Application background:

The dispensing process is widely used in various industries such as household appliances, 3C digital, new energy, and healthcare. It is an important process in the production and assembly of related products, which directly affects product performance, aesthetics, and lifespan.

With the increasing demand for product quality and production efficiency in modern manufacturing, automated dispensing machines are replacing traditional manual dispensing and becoming a new favorite.

Glue dispensing machine:

Also known as glue coating machine, drip glue machine, glue application machine, glue filling machine Specially controlling fluids.

Fix SMT components by applying fluid points, injections, coatings, and drops onto the surface or interior of the product.

Working principle:

1. Compressed air is sent into the rubber bottle (syringe) to press the rubber into the feed tube connected to the piston chamber

When the piston is in During the upstroke, the piston chamber is filled with glue

When the piston pushes down on the dripping needle, the glue is pressed out from the needle tip

The amount of glue dripping is determined by the distance of the piston's downward stroke, which can be manually adjusted or automatically controlled in software.

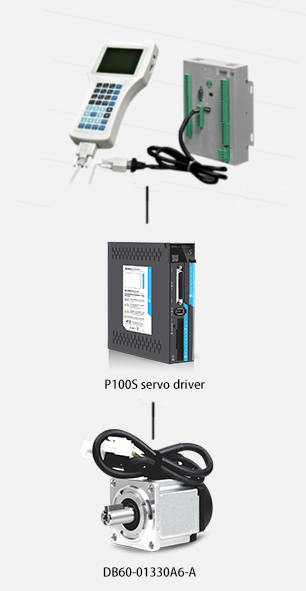

Devison Plan:

Highlights of the plan:

■Fast movement and stable rhythm

■ 3-axis/4-axis interpolation, high-speed pulse output

■ Supports continuous trajectory control and smooth processing

■ Provide quick comparison output commands, control the opening and closing actions of the dispensing solenoid valve, and be able to quickly dispense/close the adhesive at the set position without drawing or bubbles during dispensing
