Application background:

Cell winding equipment (cylindrical battery)

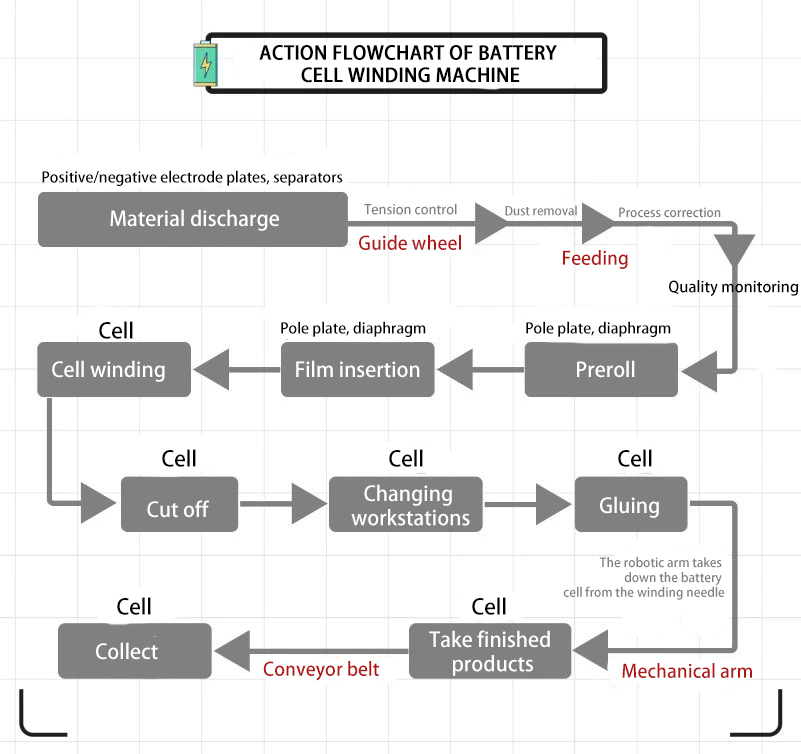

Used in the middle stage of lithium battery manufacturing, the entire roll of positive/negative electrodes and separators are processed into cylindrical lithium battery cells by winding.

User pain points:

Are these issues causing you trouble?

Polar offset

Polar ear offset

Inconsistent cutting

Low production efficiency

Fit gap

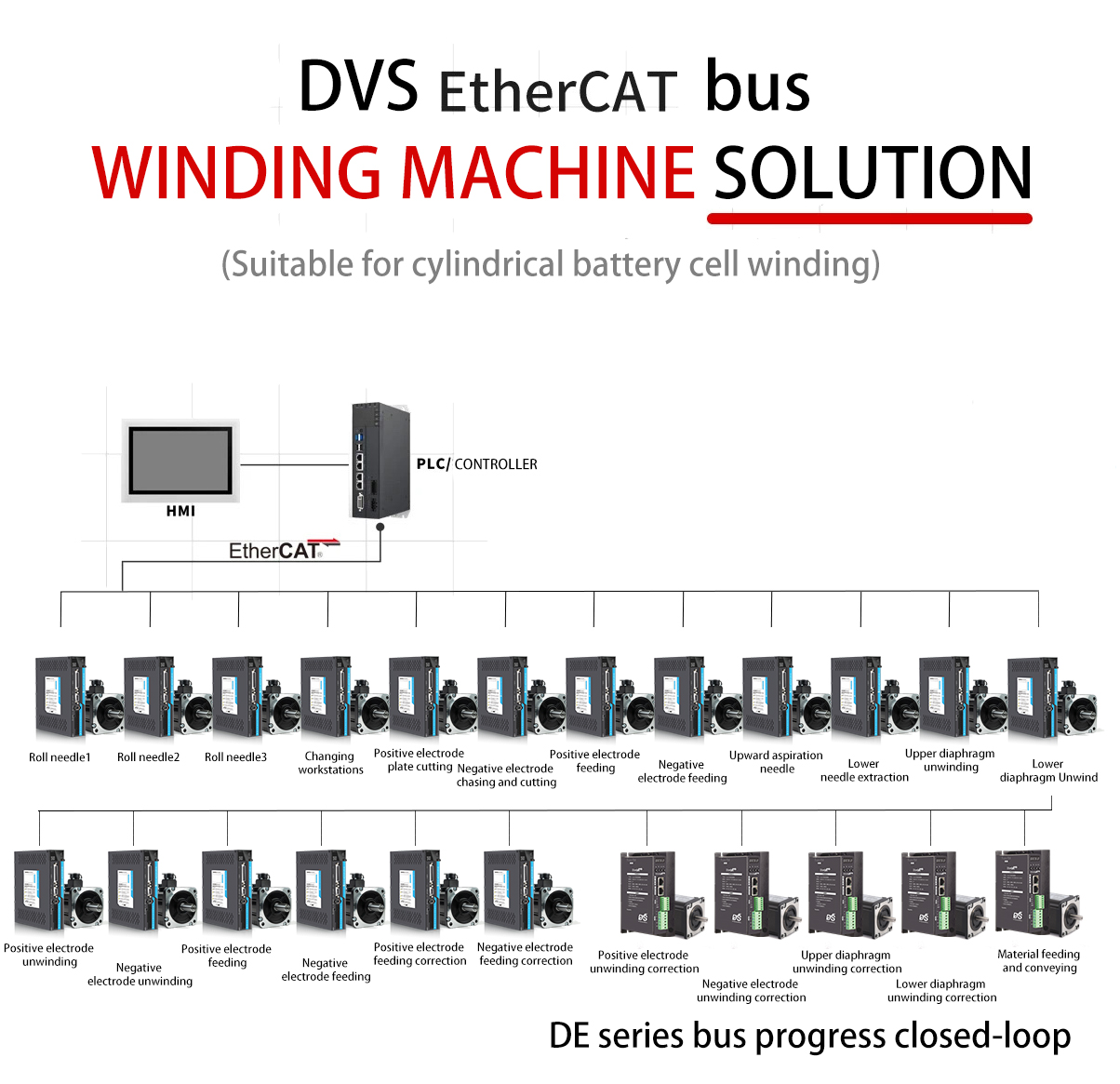

Devison Plan:

Highlights of the plan:

Implementation effect

Two pairs, one cut, one fit, and the rhythm of the folding and releasing is super efficient

≤ 0.3mm soil electrode alignment accuracy

≤ 10 ° soil pole ear alignment accuracy

≤+0.5mm electrode cutting accuracy

≤ 1.8s cell winding rhythm
