Features:

1. It has two motion modes: position mode and speed mode, controlled by the SW10 toggle switch;

2. Equipped with 16 equal angle constant moment subdivisions, with a maximum resolution of 51200 steps per revolution;

3. The maximum response frequency can reach 200Kpps;

4.When the step pulse stops for more than 1.5 seconds, the coil current automatically decreases to half of the set current;

5. Optoelectronic isolation signal input/output;

6. The driving current is adjustable from 2.0A/phase to 6.0A/phase in 8 levels;

7. DC power input, voltage range: AC18V~80V/DC25V~110V;

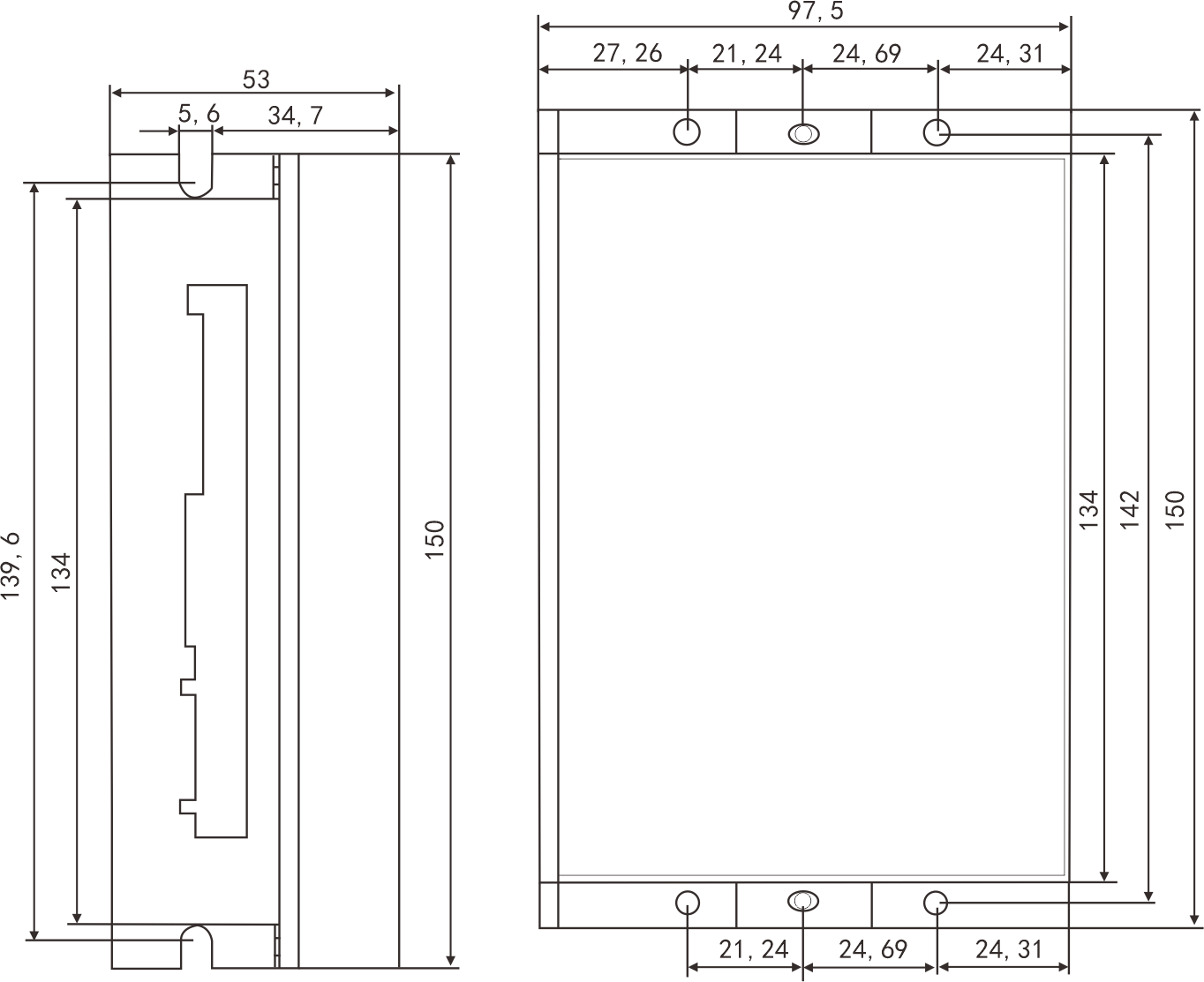

8. Driver installation size: 150 × fifty-three × 97.5mm3, net weight: 0.6Kg.

Current setting:

The operating current of the driver is set by the DIP switches SW1~SW3, and the operating current is the effective output current for operation. Peak current=operating current × 1.4.

Note: When SW4 is set to OFF, it will automatically shut down and reduce the current by half. When it is set to ON, the driver will always output the full current according to the set current.

Subdivision settings and I/O mode settings:

The subdivision setting and I/O mode setting are controlled by the toggle switch SW10. When SW10=OFF, it is the subdivision setting mode; When SW10=ON, it is in I/O mode. The subdivision and speed are set by the toggle switch SW5~SW8, with a total of 16 levels.

Attention:

1.The input voltage cannot exceed AC80V/DC110V;

2. In position mode, the falling edge of the input pulse signal is effective, and the rising and falling edges are adjustable;

3. When the temperature of the drive exceeds 80 degrees, the drive stops working and the fault indicator light ALM lights up. Until the temperature of the drive drops to 50 degrees, the drive needs to be powered on again to resume operation. If overheating protection occurs, please install a heat sink;

4. The overcurrent (load short circuit) fault indicator light ALM is on. Please check the motor wiring and other short circuit faults. After troubleshooting, it is necessary to power on again to restore;

5. No motor fault indicator light ALM is on. Please check the motor wiring. After
