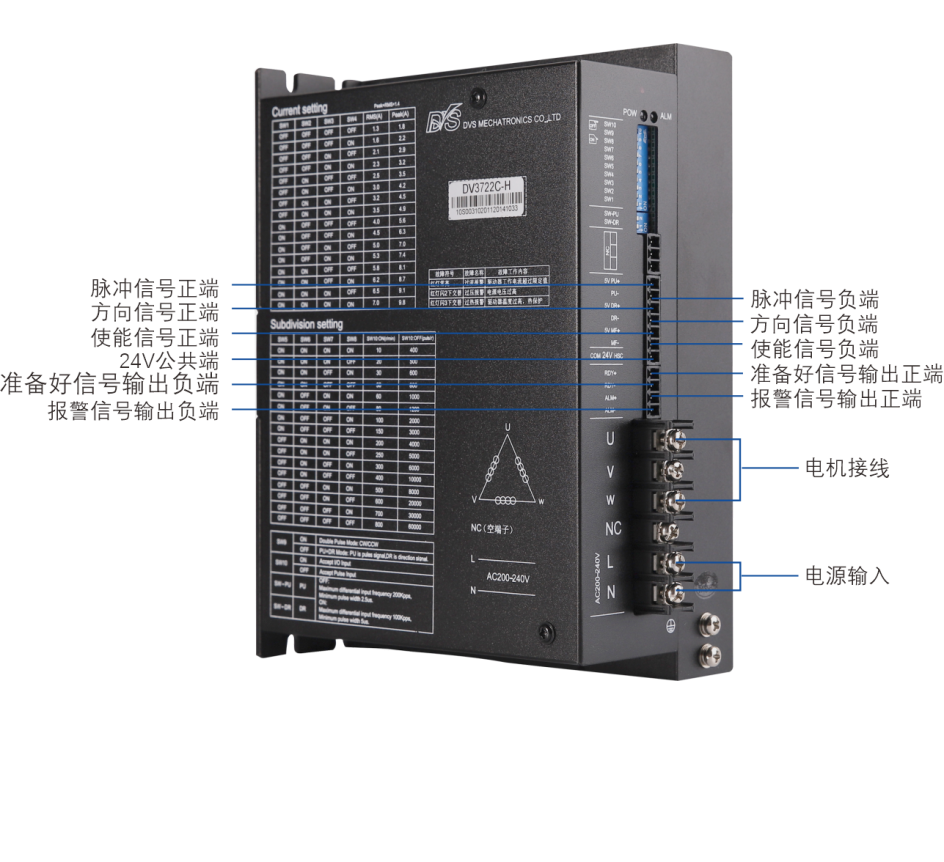

DV3722C

DV series digital stepper driver

Product Introduction

DV3722C is a new type of stepper driver successfully developed according to market demand and development trends. It adopts a new 32-bit motor control dedicated DSP chip, which makes the motor run more smoothly and less prone to losing steps. Receive input signal pulses, direction, and enable input. When using internal positions, pulse and directional interfaces can be used for sensor signal input. Minimizing the heat generation and vibration amplitude of the motor has improved the machining speed and accuracy of mechanical operation. The working voltage is AC200V~AC240V, suitable for high-voltage 3-phase stepper motors with a current below 7.0A.

Technical Parameter

Features:

1. A brand new 32-bit motor control dedicated DSP chip;

2. Equipped with 16 levels of equal angle constant torque subdivision, with a maximum resolution of 60000 steps/revolution, and internal support for electronic gear ratios;

3. The maximum response frequency can reach 200Kpps;

4. If the step pulse stops for more than 0.5 seconds, the coil current will automatically decrease to half of the set current. This parameter can be set;

5. Driver installation size: 203 × seventy-eight × 147mm3, net weight: 1.4Kg;

6. Phase memory function;

7. Optoelectronic isolation signal input;

8. Single power input, voltage range: AC200V~240V;

9. It has protection against overcurrent, overvoltage, overheating, etc.

Current setting:

The operating current of the driver is set by the DIP switches SW1~SW4, and the operating current is the effective output current for operation. Peak current=operating current × 1.4.

Peak current (A)1.82.22.93.23.54.24.54.95.66.37.07.48.1
Operating current (A)1.31.62.12.32.53.03.23.54.04.55.05.35.8
SW1OFFOFFOFFOFFOFFOFFOFFOFFONONONONON
SW2OFFOFFOFFOFFONONONONOFFOFFOFFOFFON
SW3OFFOFFONONOFFOFFONONOFFOFFONONOFF
SW4OFFONOFFONOFFONOFFONOFFONOFFONOFF

Subdivision settings and I/O mode settings:

The subdivision setting and I/O mode setting are controlled by the toggle switch SW10. When SW10=OFF, it is the subdivision setting mode; When SW10=ON, it is in I/O mode. The subdivision and speed are set by the toggle switch SW5~SW8, with a total of 16 levels.

Subtraction(puls/r)40050060080010001200200030004000500060001000080002000030000
Speed value(rpm)102030506080100150200250300400500600700
SW5ONONONONONONONONOFFOFFOFFOFFOFFOFFOFF
SW6ONONONONOFFOFFOFFOFFONONONONOFFOFFOFF
SW7ONONOFFOFFONONOFFOFFONONOFFOFFONONOFF
SW8ONOFFONOFFONOFFONOFFONOFFONOFFONOFFON
SW9ONDual pulse mode: PU is a forward stepping pulse signal, DR is a reverse stepping pulse signal
OFFSingle pulse mode: PU is a stepping pulse signal, DR is a directional control signal
SW10ONAccept l/O input signal
OFFAccept external pulse signals
SW-PUPUOFF: Maximum differential input frequency 200kpps, minimum pulse width 2.5us.
       ON: Maximum differential input frequency 100kpps, minimum pulse width 5us.
SW-DRDR

Attention:

1.The input voltage cannot exceed AC220V;

2. In position mode, the falling edge of the input pulse signal is effective, and the rising and falling edges are adjustable;

3. When the temperature of the drive exceeds 80 degrees, the drive stops working and the fault indicator light ALM lights up. Until the temperature of the drive drops to 50 degrees, the drive needs to be powered on again to resume operation. If overheating protection occurs, please install a heat sink;

4. The overcurrent (load short circuit) fault indicator light ALM is on. Please check the motor wiring and other short circuit faults. After troubleshooting, it is necessary to power on again to restore;

5. No motor fault indicator light ALM is on. Please check the motor wiring. After

troubleshooting, power on again to restore.

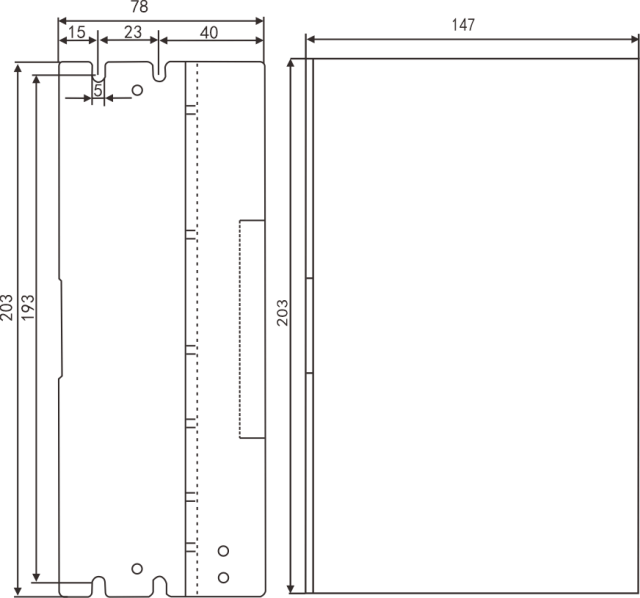

External dimensions


Wring method


Accessory products

Stepping motorDrive
ModelStep angle(°)Motor length(mm)Current(A)Resistance(Ω)Holding torque(N.m)Rotor inertia(g.cm²)Weight (kg)Impulsive
110mmDV31112H-011.21272.51.048.060005.0DV3722C
DV31115H-011.21513.50.61297206.3
DV31118H-011.21853.750.716135608.5
DV31122H-011.221940.57201740010.7
130mmDV31315H-011.21616.90.55152000011
DV31318H-011.21906.90.72202670014.1
DV31322H-011.22226.90.95283397017.2
DV31325H-011.22546.91.1354124019.8
DV31332H-011.23186.91.4505578026
