DE2205E is a bus type closed-loop stepper driver that adds bus communication function on the basis of the DE series high-performance stepper closed-loop driver, and is suitable for stepper closed-loop drivers with 57 flanges and below. Using the EtherCAT bus communication interface and based on EtherCAT slave technology, the real-time control and data transmission of the stepper system are achieved at a transmission rate of 100Mb/s. This driver has rich input and output interfaces and supports CSP, PP, and HM operating modes. Compared with traditional pulse drivers, this driver is particularly suitable for applications with long-distance and multi axis linkage, which can greatly reduce wiring and enhance the reliability of the driver's operation.
Features:
1. The working voltage is AC input voltage of DC20-50V
2. Supports EtherCAT communication protocol, with addresses automatically allocated through the main station

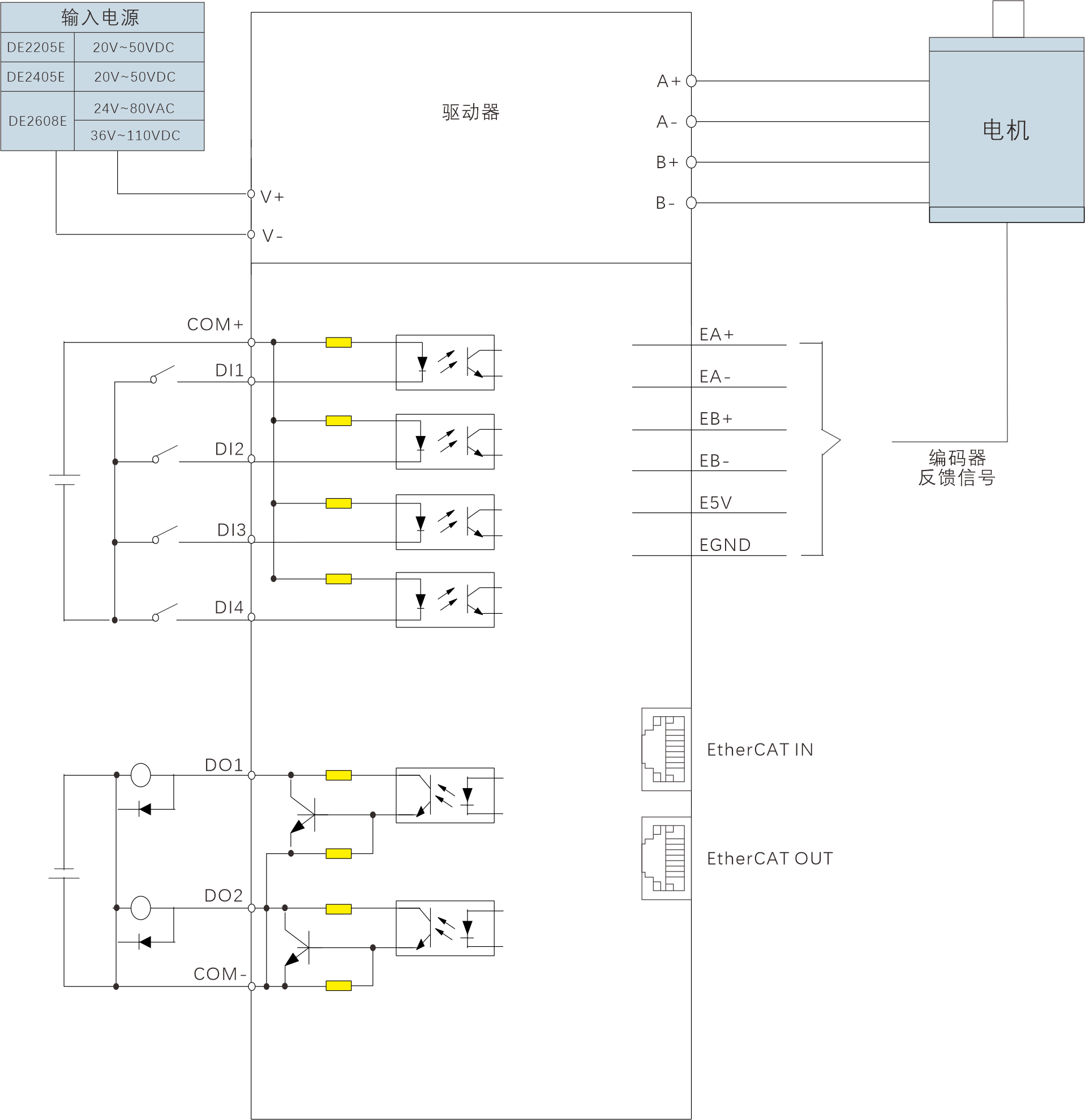

3.4 single ended common positive isolation input function, with a maximum input frequency of 10KHz and an input voltage of 5V
4.2 optocoupler isolated outputs, with a maximum output capacity of 50mA and a maximum withstand voltage of 30Vdc
Application field:
Suitable for various small and medium-sized automation equipment and instruments with multi axis linkage control, such as robotic arms, packaging machinery, etc
Specification parameters:
Maximum output current | Monitoring function | Main circuit input power supply | Control method |
2A (Ampere) | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | DC: 20VDC-50VDC | 0: Position control method |
Protection function | Control in | Control output | Display Operations |
Overspeed/main power supply overvoltage/overcurrent/overload encoder abnormality/control power supply abnormality/position deviation, etc | 1: Enable 2: Alarm clear 3: Zero deviation counter 4: Command pulse suppression | Get ready for output/alarm output Positioning completed output/mechanical brake output | Can be connected to an external display board for related settings and operations |
Positioning | Input method | Bus based communication |

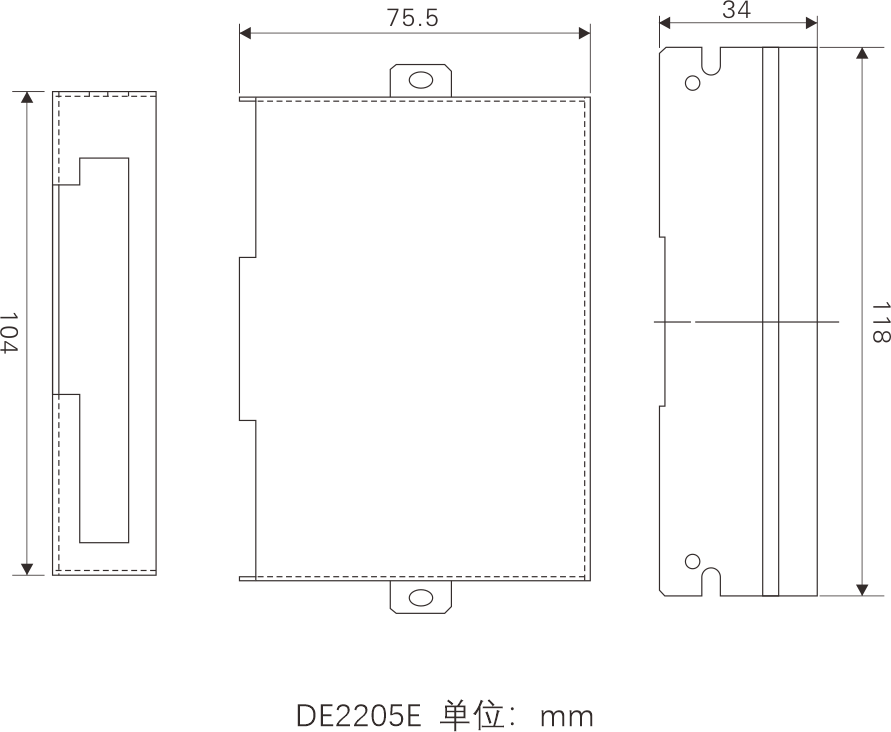

Usage environment and parameters:
Cooling method | Application environment | Storage temperature | Weight | ||
Medium environment | Temperature | Humidity | |||
Natural wind cooling or forced cooling | No corrosive gases or dust, and cannot be used in special environments such as fields or vacuum that contain radioactive substances | 0~ 50°C | 40 ~ 90%RH | -20°C ~ 65°C | 0.3Kgs |
Electrical machinery | Drive | |||
Base | Standard type | Band brake type | Torque (N.m) | Bus type |
42mm | DE42HB47-1000-01 | DE42HB47-1000-B-01 | 0.48 | DE2205E |
DE42HB60-1000-01 | DE42HB60-1000-B-01 | 0.72 |
