DE2405E bus closed-loop stepper driver
DE series EtherCAT bus stepper closed-loop driver
Product Introduction
DE2405E is a bus type closed-loop stepper driver that adds bus communication function on the basis of the DE series high-performance stepper closed-loop driver, and is suitable for stepper closed-loop drivers with 57 flanges and below. Using the EtherCAT bus communication interface and based on EtherCAT slave technology, the real-time control and data transmission of the stepper system are achieved at a transmission rate of 100Mb/s. This driver has rich input and output interfaces and supports CSP, PP, CSV, PV, and HM operating modes. Compared with traditional pulse drivers, this driver is particularly suitable for applications with long-distance and multi axis linkage, which can greatly reduce wiring and enhance the reliability of the driver's operation.
Technical data
Features:
1. The working voltage is AC input voltage of DC20-50V
2. Supports EtherCAT communication protocol, with addresses automatically allocated through the main station
3.4 single ended common positive isolation input function, with a maximum input frequency of 10KHz and an input voltage of 5V
4.2 optocoupler isolated outputs, with a maximum output capacity of 50mA and a maximum withstand voltage of 30Vdc
Application field:
Suitable for various small and medium-sized automation equipment and instruments with multi axis linkage control, such as robotic arms, packaging machinery, etc
Specification parameters:
| Maximum output current | Monitoring function | Main circuit input power supply | Control method |
| 4A (Ampere) | Speed/current position/command pulse accumulation/position deviation/motor current/IO port status, etc | DC: 20VDC-50VDC | Position control method |
| Protection function | Control in | Control output | Display Operations |
| Main power supply overvoltage/overcurrent/overheating/position deviation, etc | 1: Negative limit 2: Positive limit 3: Origin | Customized I0 port function on the main station | Can be connected to an external display board for related settings and operations |
| Positioning | Input method | Bus based communication | |
Usage environment and parameters:
| Cooling method | Application environment | Storage temperature | Weight | ||
| Medium environment | Temperature | Humidity | |||
| Natural wind cooling or forced cooling | No corrosive gases or dust, and cannot be used in special environments such as fields or vacuum that contain radioactive substances | 0~ 50°C | 40 ~ 90%RH | -20°C ~ 65°C | 0.3Kgs |

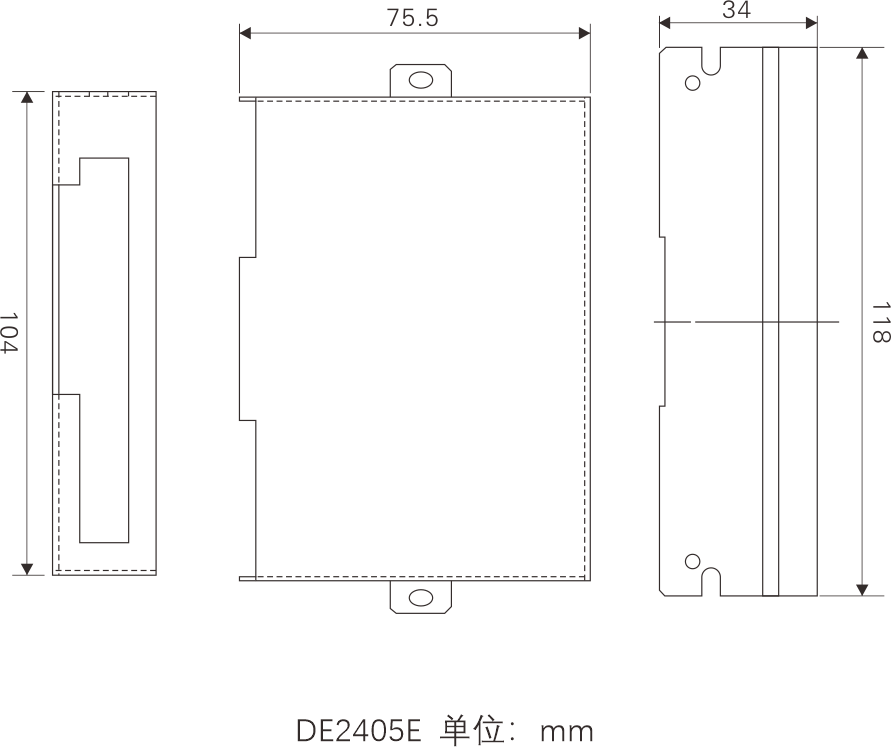

External dimensions

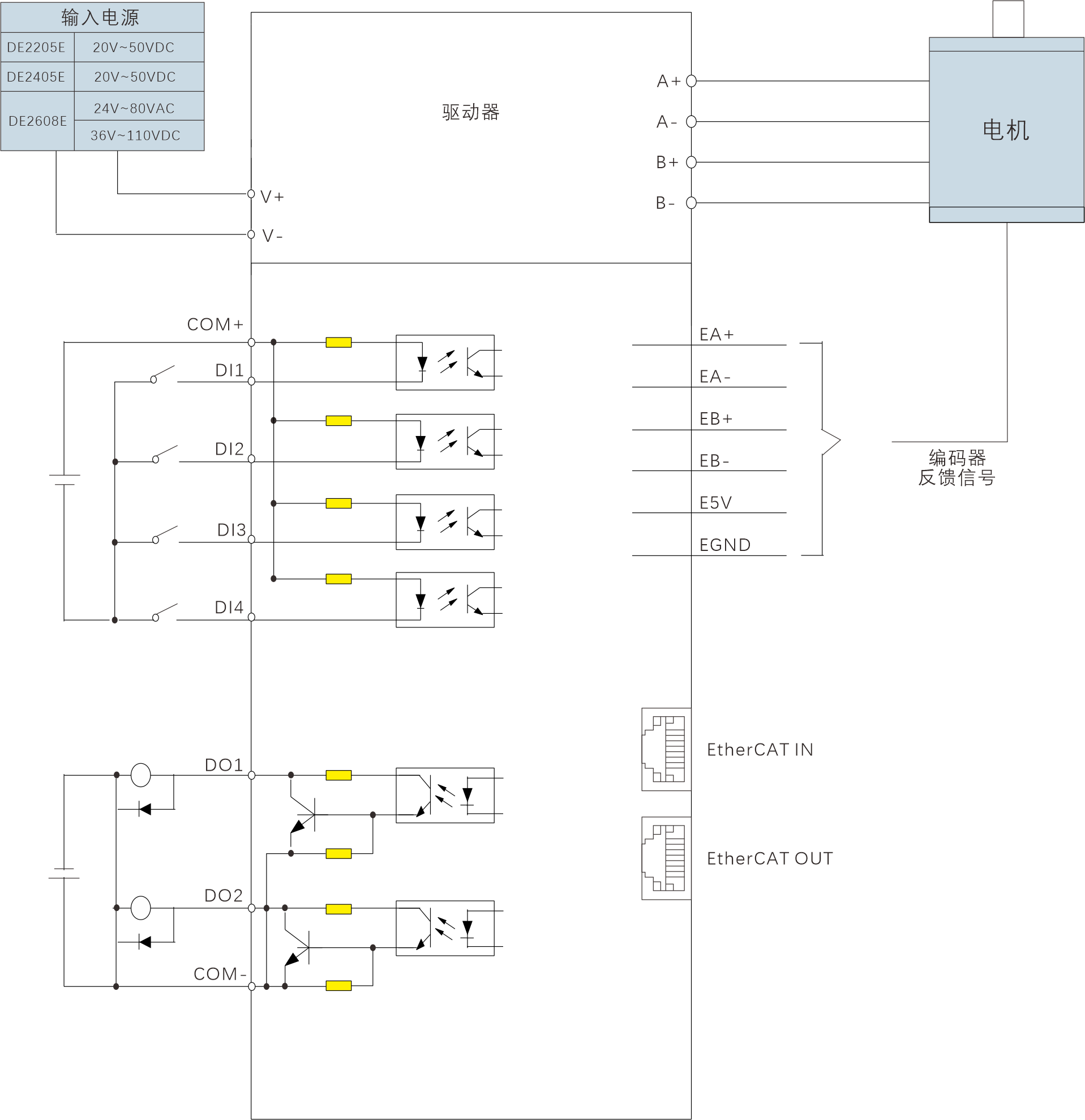

Wiring method
Accessory products
| Electrical machinery | Drive | |||
| Base | Standard type | Band brake type | Torque (N.m) | Bus type |
| 57mm | DE57HB56-1000-01 | DE57HB56-1000-B-01 | 0.9 | DE2405E |
| DE57HB76-1000-01 | DE57HB76-1000-B-01 | 2.2 | ||
| DE57HB84-1000-01 | DE57HB84-1000-B-01 | 2.4 | ||
| DE57HB100-1000-01 | DE57HB100-1000-B-01 | 2.8 | ||
| DE57HB112-1000-01 | DE57HB112-1000-B-01 | 3.0 | ||
Data download
