DE2608E bus closed-loop stepper driver
DE series EtherCAT bus stepper closed-loop driver
Product Introduction
DE2608E is a bus type servo driver that adds bus communication function on the basis of the DE series high-performance stepper closed-loop driver. Using the EtherCAT bus communication interface and based on EtherCAT slave technology, the real-time control and data transmission of the stepper system are achieved at a transmission rate of 100Mb/s. This driver has rich input and output interfaces and supports CSPPP and HM operating modes. Compared with traditional pulse drivers, this driver is particularly suitable for applications with long-distance and multi axis linkage, which can greatly reduce wiring and enhance the reliability of the driver's operation.
Technical data
Features:
1. The working voltage is AC input voltage of 24VAC-80VAC, single-phase, 50/60Hz;
2. Supports EtherCAT communication protocol, with addresses automatically allocated through the main station
3.4 single ended common positive isolation input function, with a maximum input frequency of 10KHz and an input voltage of 5V
4.2 optocoupler isolated outputs, with a maximum output capacity of 50mA and a maximum withstand voltage of 30Vdc
Application field:
Suitable for various small and medium-sized automation equipment and instruments with multi axis linkage control, such as robotic arms, packaging machinery, etc
Specification parameters:
| Maximum output current | Monitoring function | Main circuit input power supply | Control method |
| 4A (Ampere) | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | Note: 24VAC-80VAC Power supply: 36VDC-110VDC | 0:Position control method |
| Protection function | Control in | Control output | Display Operations |
| Overspeed/main power supply overvoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc | 1: Enable 2: Alarm clear 3: Zero deviation counter 4: Command pulse suppression | Prepare for output/alarm output/positioning completion output/mechanical braking output | 4-digit LED digital tube 4 buttons |
| Positioning | Input method | Bus based communication | |
Usage environment and parameters:
| Cooling method | Application environment | Storage temperature | Weight | ||
| Medium environment | Temperature | Humidity | |||
| Natural wind cooling or forced cooling | No corrosive gases or dust, and cannot be used in special environments such as fields or vacuum that contain radioactive substances | 0~ 50°C | 40 ~ 90%RH | -20°C ~ 65°C | 0.3Kgs |

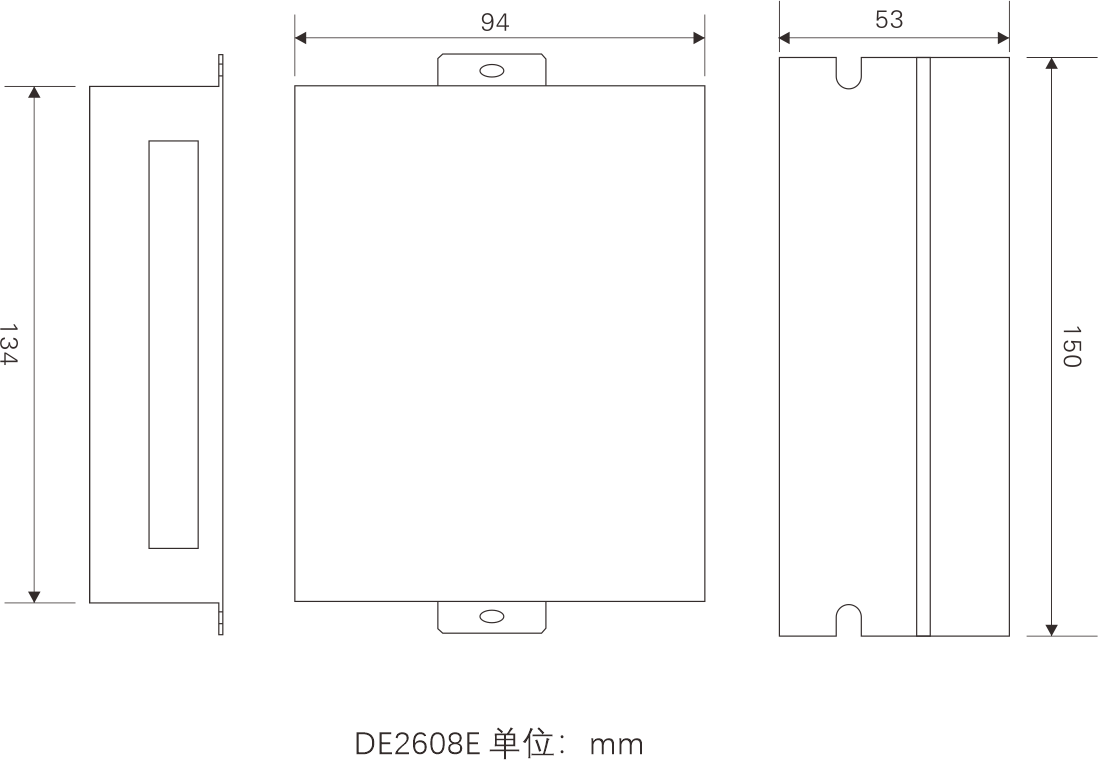

External dimensions

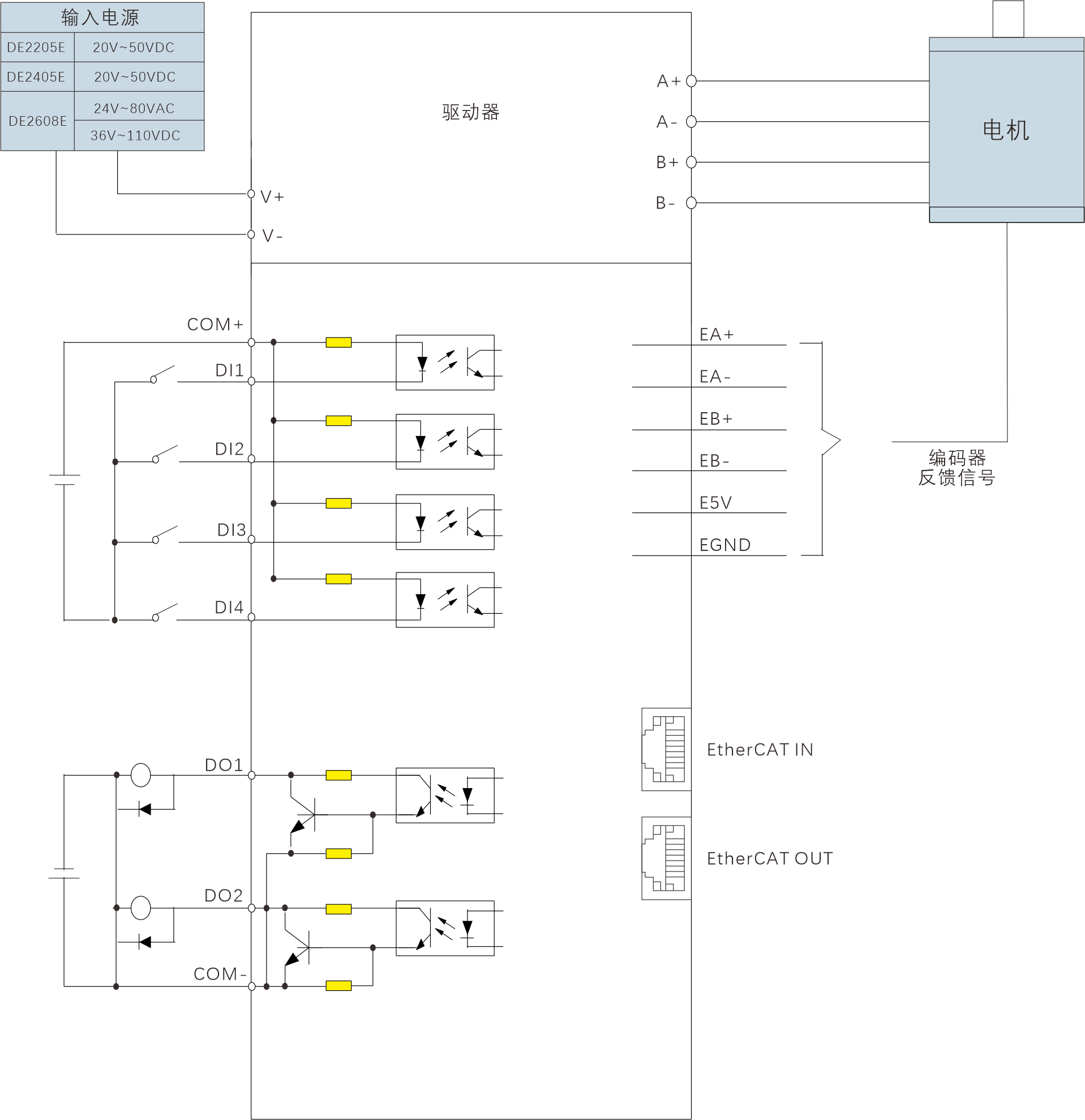

Wiring method
Accessory products
| Electrical machinery | Drive | |||
| Base | Standard type | Band brake type | Torque (N.m) | Bus type |
| 60mm | DE60HB68-1000-01 | DE60HB68-1000-B-01 | 2.4 | DE2608E |
| DE60HB84-1000-01 | DE60HB84-1000-B-01 | 3.0 | ||
| 86mm | DE86HB80-1000-01 | DE86HB80-1000-B-01 | 4.5 | |
| DE86HB98-1000-01 | DE86HB98-1000-B-01 | 7.5 | ||
| DE86HB118-1000-01 | DE86HB118-1000-B-01 | 8.5 | ||
| DE86HB156-1000-01 | DE86HB156-1000-B-01 | 12.2 | ||
Data download
