DE series two-phase closed-loop stepper motor 42mm
DE series stepper closed-loop motor
Product Introduction
Project specification step accuracy ± 5% Temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ Insulation resistance 100M Ω Min 500VDC withstand voltage 500V AC 1min Radial runout maximum 0.06mm (450g load) Axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Body length （mm） | Phase current （A） | Resistance （Ω） | Inductance （mH） | Minimum static torque （N.m） | Rotor inertia （g.cm²） | Encoder output circuit | Encoder resolution |
| DE42HB47-1000-01 | 1.8 | 68 | 2.0 | 1.35 | 3.2 | 0.72 | 72 | Differential Output | 1000CPR |
| DE42HB60-1000-01 | 1.8 | 80 | 2.0 | 1.75 | 4 | 0.48 | 110 | 1000CPR |

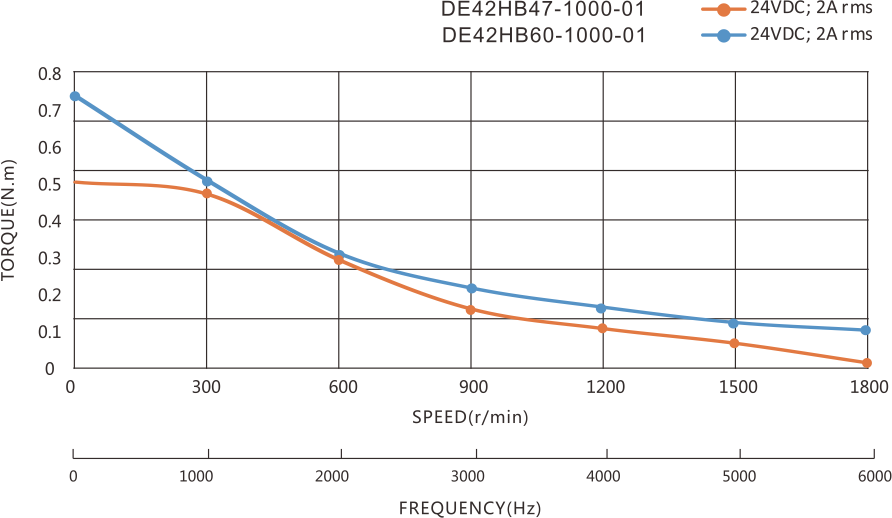

Short frequency characteristic curve chart
Encoder specifications
| Resolution | Output method | Output circuit | Output signal | Output voltage |
| 1000cpr/4000ppr | Incremental | Differential output | A+A-;B+B- | 5VDC±5% |
Brake specifications
| Brake type | Power supply voltage | Brake power | Brake torque | Braking operation/contact time |
| Power off brake | 24VDC±5% | 3.5W | 0.5N.m | 50ms |
Wiring method

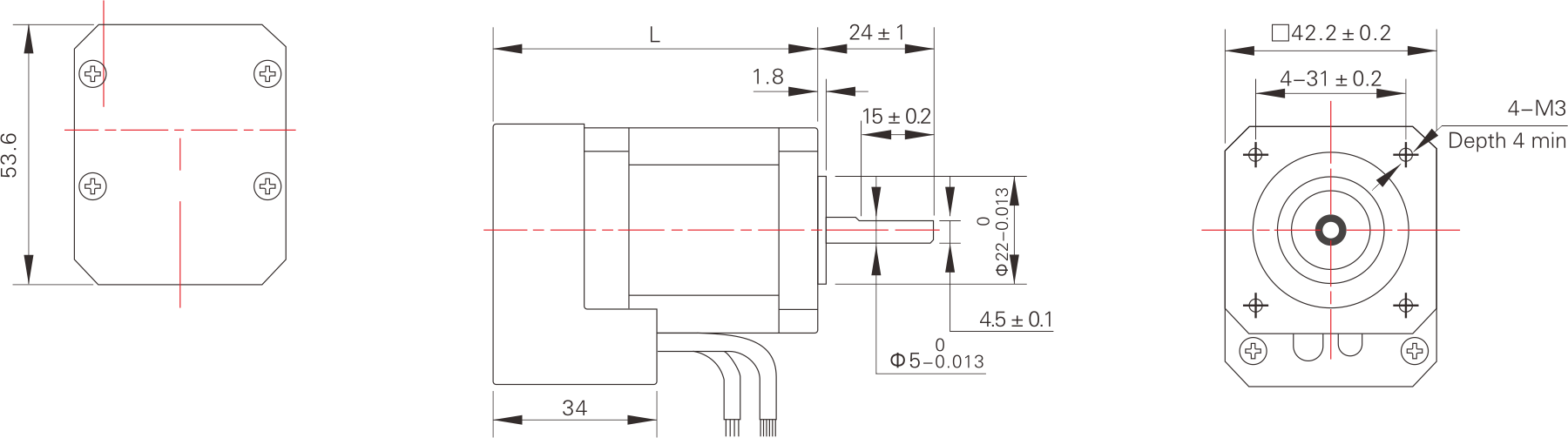

Dimension
