DE series two-phase closed-loop stepper motor 57mm
DE series stepper closed-loop motor
Product Introduction
Project specification step accuracy ± 5% Temperature rise 80 ℃ Max Insulation resistance 100M Ω Min 500VDC withstand voltage 500V AC 1minute Radial runout maximum 0.06mm (450g load) Axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Phase current （A） | Resistance （Ω） | Inductance （mH） | Minimum static torque （N.m） | Rotor inertia （g.cm²） | Dielectric strength (VDC) | Insulation resistance (M) | Insulation level |
| DE57HB56-1000-01 | 1.8 | 4.0 | 0.44 | 1.13 | 0.9 | 300 | 1000V | >500M(500V) | F-level |
| DE57HB76-1000-01 | 1.8 | 4.0 | 0.33 | 1.67 | 2.2 | 480 | 1000V | >500M(500V) | F-level |
| DE57HB84-1000-01 | 1.8 | 4.0 | 0.69 | 2.2 | 2.4 | 520 | 1000V | >500M(500V) | F-level |
| DE57HB100-1000-01 | 1.8 | 4.5 | 1.13 | 2.97 | 2.8 | 680 | 1000V | >500M(500V) | F-level |
| DE57HB112-1000-01 | 1.8 | 4.5 | 0.65 | 2.0 | 3.0 | 780 | 1000V | >500M(500V) | F-level |
Short frequency characteristic curve chart
Encoder specifications
| Resolution | Output method | Output circuit | Output signal | Output voltage |
| 1000cpr/4000ppr | Incremental | Differential output | A+A-;B+B- | 5VDC±5% |
Brake specifications
| Brake type | Power supply voltage | Brake power | Brake torque | Braking operation/contact time |
| Power off brake | 24VDC±5% | 5W | 2N.m | 50ms |
Wiring method

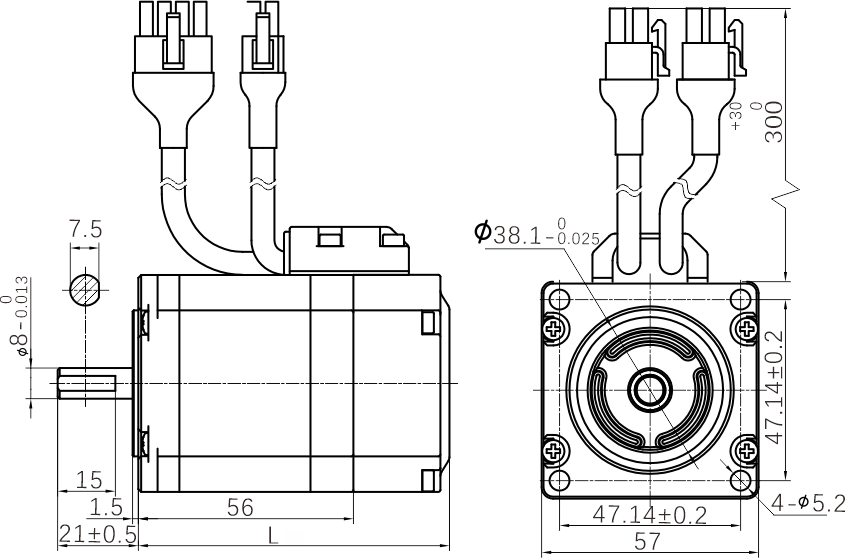

Dimension
| Model | L without brake (mm) |
| DE57HB56-1000-01 | 81 |
| DE57HB76-1000-01 | 103 |
| DE57HB84-1000-01 | 108 |
| DE57HB100-1000-01 | 125 |
| DE57HB112-1000-01 | 137 |
