DE series two-phase closed-loop stepper motor 60mm
DE series stepper closed-loop motor
Product Introduction
Project specification step accuracy ± 5% Temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ Insulation resistance 100M Ω Min 500VDC withstand voltage 500V AC 1min Radial runout maximum 0.06mm (450g load) Axial runout maximum 0.08mm (450g load)
Specification parameters
| Model |
Step angle （°） |
Phase current （A） |
Resistance （Ω） |
Inductance （mH） |
Minimum static torque （N.m） |
Rotor inertia （g.cm²） |
Dielectric strength (VDC) | Insulation resistance (M) | Insulation level |
| DE60HB68-1000-01 | 1.8 | 4.0 | 0.41 | 1.1 | 2.4 | 560 | 1000V | >500M(500V) | F-level |
| DE60HB84-1000-01 | 1.8 | 4.0 | 0.5 | 2.04 | 3.0 | 900 | 1000V | >500M(500V) | F-level |

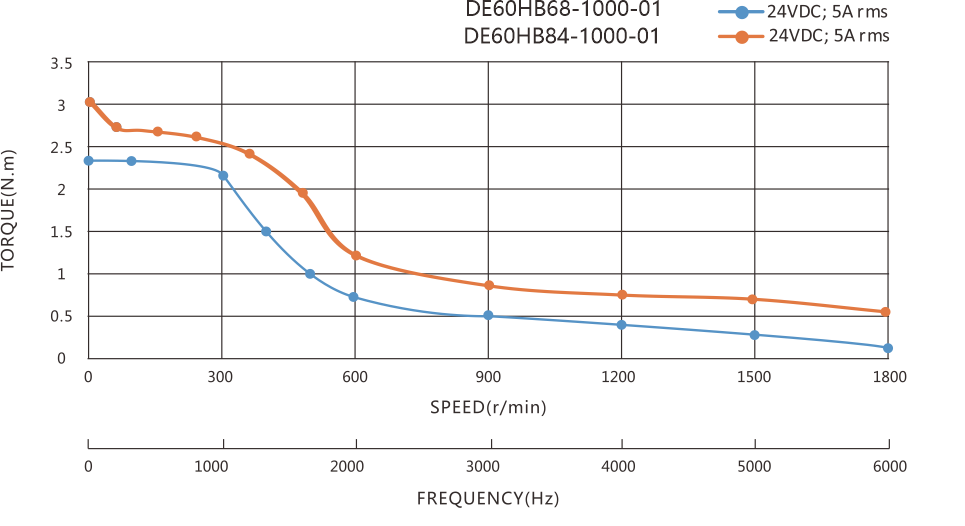

Short frequency characteristic curve chart
Please note that the dynamic torque curve is based on data from our company's testing conditions. The driving conditions change, and the dynamic torque also changes. The rated current indicated in the specifications is the effective value current. Please set the driver's set current below the motor's rated current
Encoder specifications
| Resolution | Output method | Output circuit | Output signal | Output voltage |
| 1000cpr/4000ppr | Incremental | Differential output | A+A-;B+B- | 5VDC±5% |
Brake specifications
| Brake type | Power supply voltage | Brake power | Brake torque | Braking operation/contact time |
| Power off brake | 24VDC±5% | 5W | 2N.m | 50ms |
Wiring method

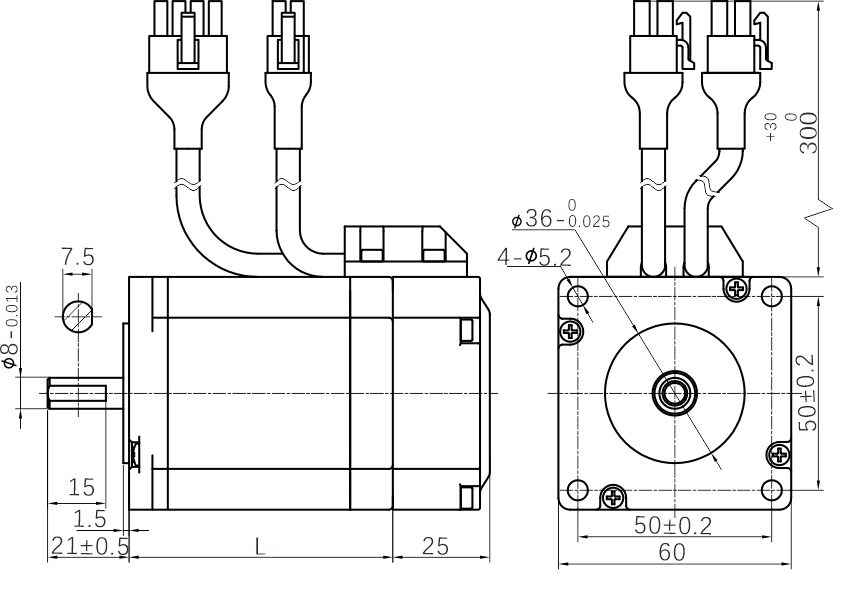

Dimension
| Model | L without brake (mm) |
| DE60HB68-1000-01 | 93 |
| DE60HB84-1000-01 | 110 |
