DE series two-phase closed-loop stepper motor 86mm
DE series stepper closed-loop motor
Product Introduction
Project specification step accuracy ± 5% Temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ Insulation resistance 100M Ω Min 500VDC withstand voltage 500V AC 1min Radial runout maximum 0.06mm (450g load) Axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Phase current （A） | Resistance （Ω） | Inductance （mH） | Minimum static torque （N.m） | Rotor inertia （g.cm²） | Dielectric strength (VDC) | Insulation resistance (M) | Insulation level |
| DE86HB80-1000-01 | 1.8 | 6.0 | 0.35 | 3.0 | 4.5 | 1400 | 1000V | >500M(500V) | F-level |
| DE86HB98-1000-01 | 1.8 | 6.0 | 0.47 | 3.84 | 7.5 | 2100 | 1000V | >500M(500V) | F-level |
| DE86HB118-1000-01 | 1.8 | 6.0 | 0.51 | 6.2 | 8.5 | 2700 | 1000V | >500M(500V) | F-level |
| DE86HB156-1000-01 | 1.8 | 6.0 | 0.76 | 8.4 | 12.2 | 4000 | 1000V | >500M(500V) | F-level |

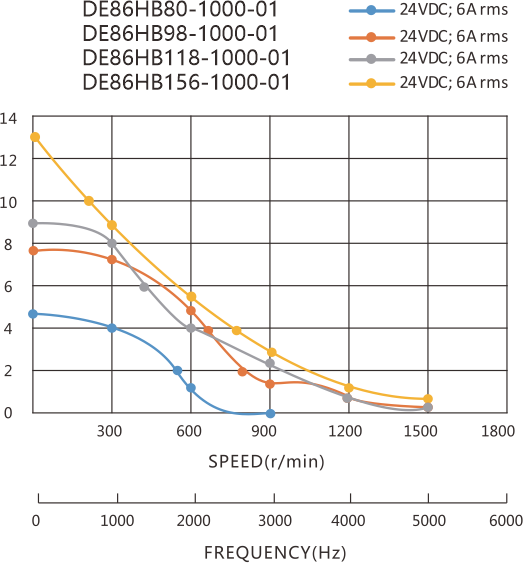

Short frequency characteristic curve chart
Encoder specifications
| Resolution | Output method | Output circuit | Output signal | Output voltage |
| 1000cpr/4000ppr | Incremental | Differential output | A+A-;B+B- | 5VDC±5% |
Brake specifications
| Brake type | Power supply voltage | Brake power | Brake torque | Braking operation/contact time |
| Power off brake | 24VDC±5% | 5W | 2N.m | 50ms |
Wiring method

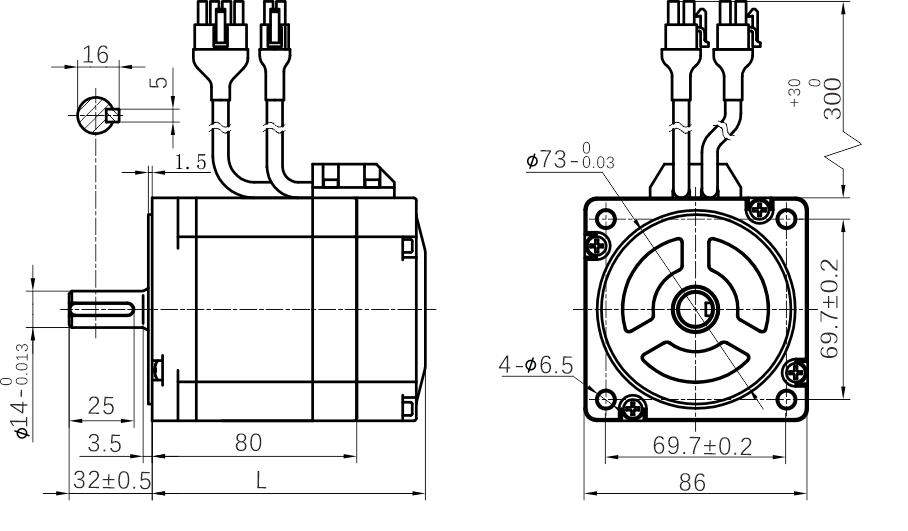

Dimension
| Model | L without brake (mm) |
| DE86HB80-1000-01 | 106 |
| DE86HB98-1000-01 | 125 |
| DE86HB118-1000-01 | 145 |
| DE86HB156-1000-01 | 183 |
