Product Introduction
Power: 100W Rated voltage: 220V Encoder configuration: economical single circle absolute value 21 bit Encoder application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.
Specification parameters
| Motor model | DB40-00330A7-A |
| Rated power (KW) | 0.1 |
| Rated voltage (V) | 220 |
| Rated current (A) | 1.1 |
| Instantaneous maximum current (A) | 3.5 |
| Rated torque (N.m) | 0.318 |
| Instantaneous maximum torque (N.m) | 0.954 |
| Rated speed (rpm) | 3000 |
| Peak speed (rpm) | 6000 |
| Back electromotive force (V/Krpm) | 23 |
| Torque constant (N.m/A) | 0.29 |
| Line resistance (Ohms) | 20.6 |
| Winding (line to line) inductance (mH) | 10.3 |
| Electrical time constant (ms) | 1.1 |
| Inertia of rotor (kg · m²) | 0.066x10-4 |
| Polar logarithm | 5 |
| Insulation level | F(155℃) |

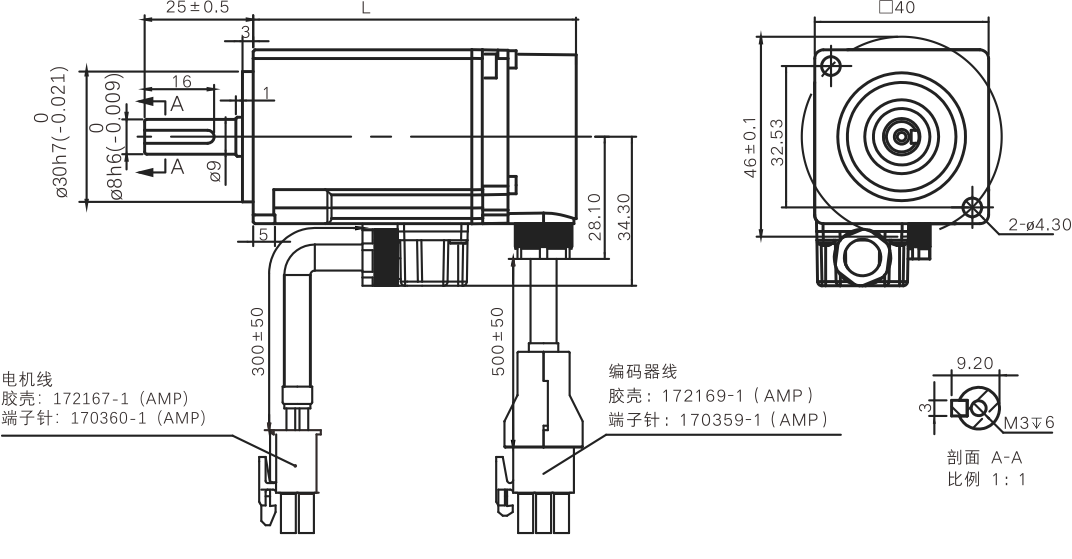

External dimensions
Dimension
| Motor model | L without brake (mm) | L band brake (mm) |
| DB40-00330A7-A | 80.8 | 114 |
Data download
