DB60 series motors

> PRODUCT >The new generation of AC servo motors>DB series motors

DB series motors

Product Introduction

Power range: 200W~600W Rated voltage: 220V Encoder configuration: economical single loop absolute value 21 bit Encoder application fields: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.

Specification parameters

Motor model	DB60-00630A7-A	DB60-0133DA7-A	DB60-01930A7-A
Rated power (KW)	0.2	0.4	0.6
Rated voltage (V)	220	220	220
Rated current (A)	1.7	2.5	3.6
Instantaneous maximum current (A)	5.7	7.5	11.2
Rated torque (N.m)	0.64	1.27	1.91
Instantaneous maximum torque (N.m)	1.91	3.81	5.73
Rated speed (rpm)	3000	3000	3000
Peak speed (rpm)	6000	6000	6000
Back electromotive force (V/Krpm)	23	31	35
Torque constant (N.m/A)	0.38	0.51	0.53
Line resistance (Ohms)	4.57	3.24	2.2
Winding (line to line) inductance (mH)	4.3	5.8	4.3
Inertia of rotor (kg · m²)	0.28x10^-4	0.52x10^-4	0.76x10^-4
Polar logarithm	5
Insulation level	F(155℃)

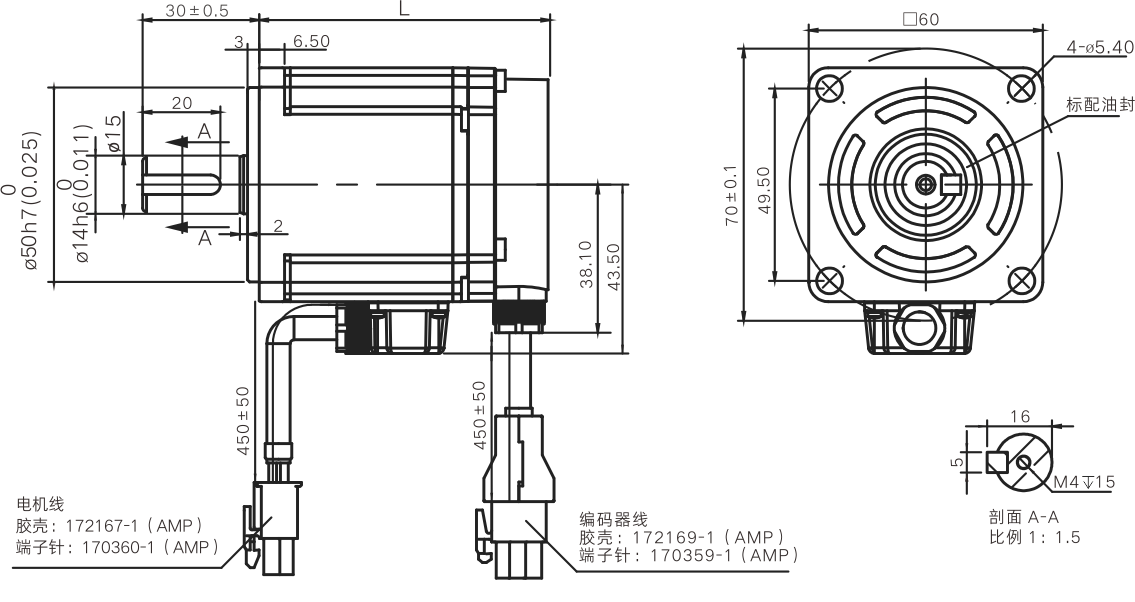

External dimensions

Dimension

Motor model	L without brake (mm)	L band brake (mm)
DB60-00630A7-A	75	104.5
DB60-0133DA7-A	92	121.5
DB60-01930A7-A	109	138.5
