DB80 Series motors
DB series motors
Product Introduction
Power range: 750W~1000W Rated voltage: 220V Encoder configuration: economical single loop absolute value 21 bit Encoder application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.
Specification parameters
| Motor model | DB80-02430A7-A | DB80-03230A7-A |
| Rated power (KW) | 0.75 | 1.0 |
| Rated voltage (V) | 220 | 220 |
| Rated current (A) | 4.7 | 5.8 |
| Instantaneous maximum current (A) | 14.5 | 18.1 |
| Rated torque (N.m) | 2.39 | 3.18 |
| Instantaneous maximum torque (N.m) | 7.17 | 9.54 |
| Rated speed (rpm) | 3000 | 3000 |
| Peak speed (rpm) | 6000 | 6000 |
| Back electromotive force (V/Krpm) | 33 | 34 |
| Torque constant (N.m/A) | 0.51 | 0.55 |
| Winding (line to line) resistance (Ω) | 1.09 | 0.73 |
| Winding (line to line) inductance (mH) | 4.6 | 2.7 |
| Inertia of rotor (kg · m²) | 1.48x10-4 | 2.27x10-4 |
| Polar logarithm | 5 | |
| Insulation level | F(155℃) | |

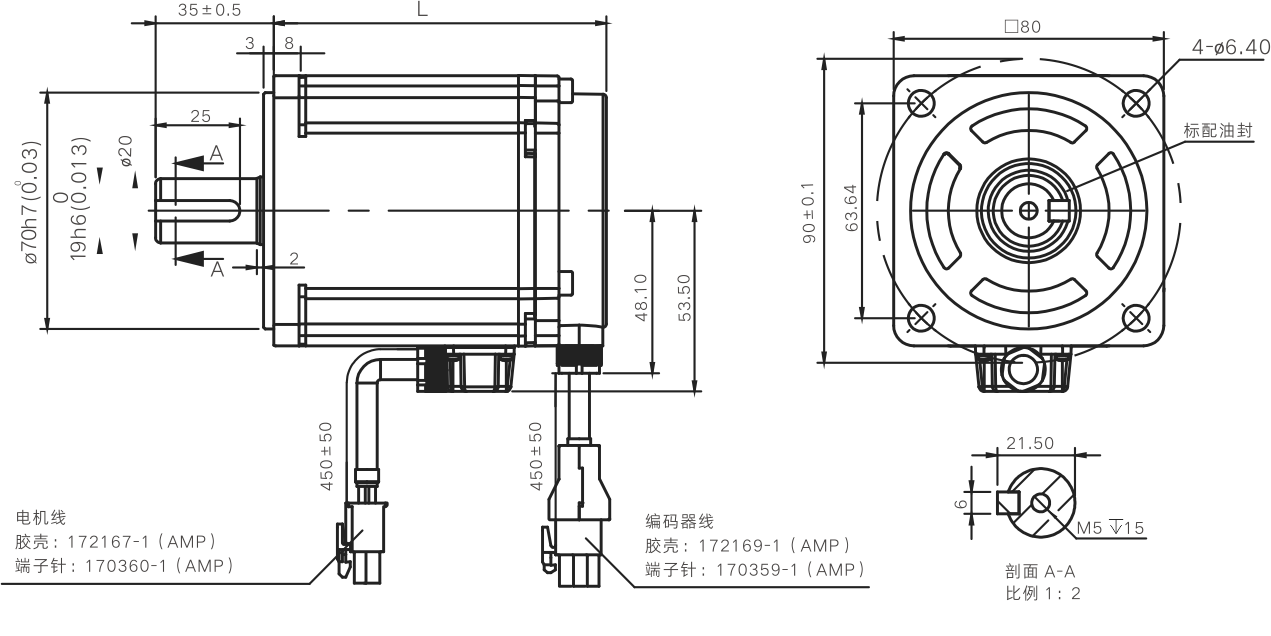

External dimensions
Dimension
| Motor model | L without brake (mm) | L band brake (mm) |
| DB80-02430A7-A | 98.5 | 128.5 |
| DB80-03230A7-A | 111.5 | 145.5 |
