DB130 Series motors
DB series motors
Product Introduction
Power range: 1130W~3100W Rated voltage: 220V Encoder configuration: economical single loop absolute value 21 bit Encoder application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.
Specification parameters
| Motor model | DB130-05420A7-H | DB130-06420A7-H | DB130-07520A7-H | DB130-08420A7-H | DB130-11520A7-H | DB130-14620A7-H | ||||||
| Rated power (KW) | 1.13 | 1.34 | 1.57 | 1.76 | 2.4 | 3.1 | ||||||
| Rated voltage (V) | 220 | 380 | 220 | 380 | 220 | 380 | 220 | 380 | 220 | 380 | 220 | 380 |
| Rated current (A) | 6.5 | 3.5 | 7.3 | 4.0 | 9.0 | 4.5 | 9.5 | 4.8 | 17.8 | 6.3 | 23 | 8.3 |
| Instantaneous maximum current (A) | 5.4 | 6.4 | 7.5 | 8.4 | 11.5 | 14.6 | ||||||
| Rated torque (N.m) | 16.2 | 19.2 | 22.5 | 25.2 | 34.5 | 43.8 | ||||||
| Instantaneous maximum torque (N.m) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | ||||||
| Rated speed (rpm) | 57.5 | 110 | 58.9 | 110.5 | 51.5 | 112.3 | 59.5 | 119 | 53.3 | 121 | 41.9 | 121 |
| Back electromotive force (V/Krpm) | 0.83 | 1.54 | 0.88 | 1.6 | 0.83 | 1.67 | 0.88 | 1.85 | 0.65 | 1.82 | 0.63 | 1.76 |
| Torque constant (N.m/A) | 1.2 | 3.2 | 0.75 | 2.5 | 0.52 | 2.4 | 0.56 | 2.1 | 0.35 | 1.31 | 0.17 | 0.88 |
| Line resistance (Ohms) | 5.2 | 17 | 4.0 | 13.3 | 2.84 | 13.2 | 3.1 | 11.9 | 1.79 | 8.5 | 0.77 | 6.17 |
| Winding (line to line) inductance (mH) | 4.3 | 5.3 | 5.33 | 5.32 | 5.5 | 5.5 | 5.67 | 5.1 | 6.49 | 4.5 | 7.0 | |
| Inertia of rotor (kg · m²) | 1.388x10-3 | 1.604x10-3 | 1.857x10-3 | 2.059x10-3 | 3.015x10-3 | 4.07x10-3 | ||||||
| Polar logarithm | 5 | |||||||||||
| Insulation level | Class F | |||||||||||

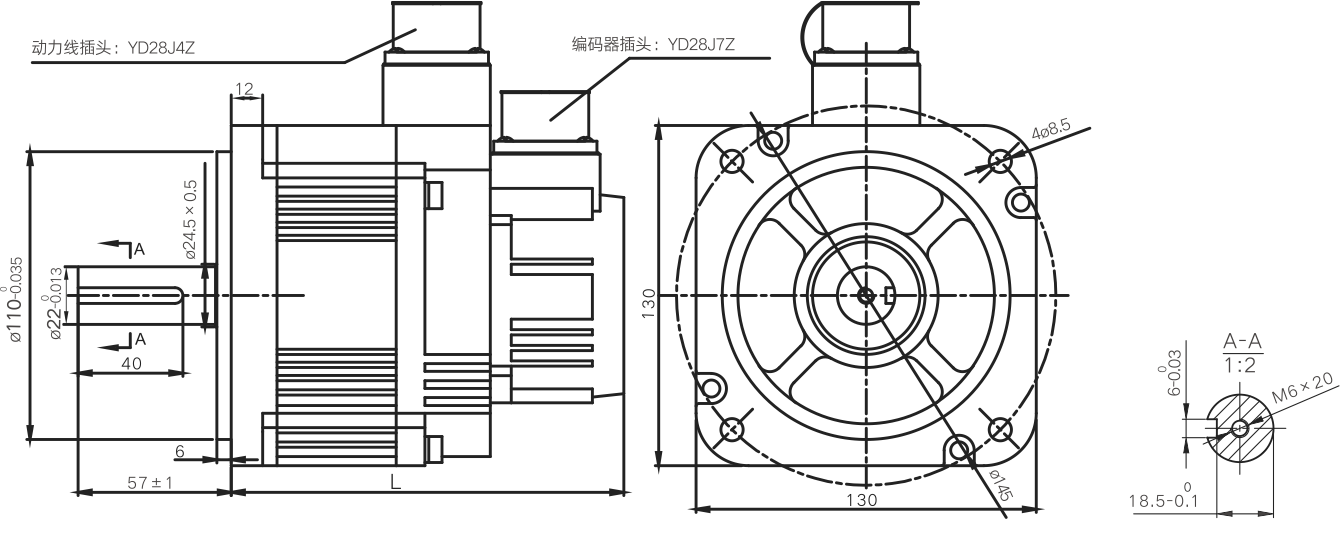

External dimensions
Dimension
| Motor model | L without brake (mm) | L band brake (mm) |
| DB130-05420A7-H | 155 | 177 |
| DB130-06420A7-H | 162 | 184 |
| DB130-07520A7-H | 169 | 191 |
| DB130-08420A7-H | 175 | 197 |
| DB130-11520A7-H | 202 | 224 |
| DB130-14620A7-H | 234 | 256 |
