DB180 Series motors

> PRODUCT >The new generation of AC servo motors>DB series motors

DB series motors

Product Introduction

Power range: 2900W~7500W Rated voltage: 220V Encoder configuration: economical single loop absolute value 21 bit Encoder application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.

Specification parameters

Motor model	DB180-18615I2-H		DB180-28415I2-H		DB180-35015I2-H		DB180-48015I2-H
Rated power (KW)	2.9		4.4		5.5		7.5
Rated voltage (V)	220	380	220	380	220	380	220	380
Rated current (A)	11.8		15.7		20.6		25.7
Instantaneous maximum current (A)	18.6		28.4		35		48
Rated torque (N.m)	55.8		85		87.5		119
Instantaneous maximum torque (N.m)	1500		1500		1500		1500
Rated speed (rpm)	108		119		113		123
Back electromotive force (V/Krpm)	1.58		1.8		1.7		1.86
Torque constant (N.m/A)	0.46		0.31		0.2		0.16
Line resistance (Ohms)	9.17		7.52		4.2		4.3
Winding (line to line) inductance (mH)	19.9		24.3		21		26.9
Inertia of rotor (kg · m²)	5.68x10^-3		7.82x10^-3		10.9x10^-3		13.0x10^-3
Polar logarithm	5
Insulation level	Class F

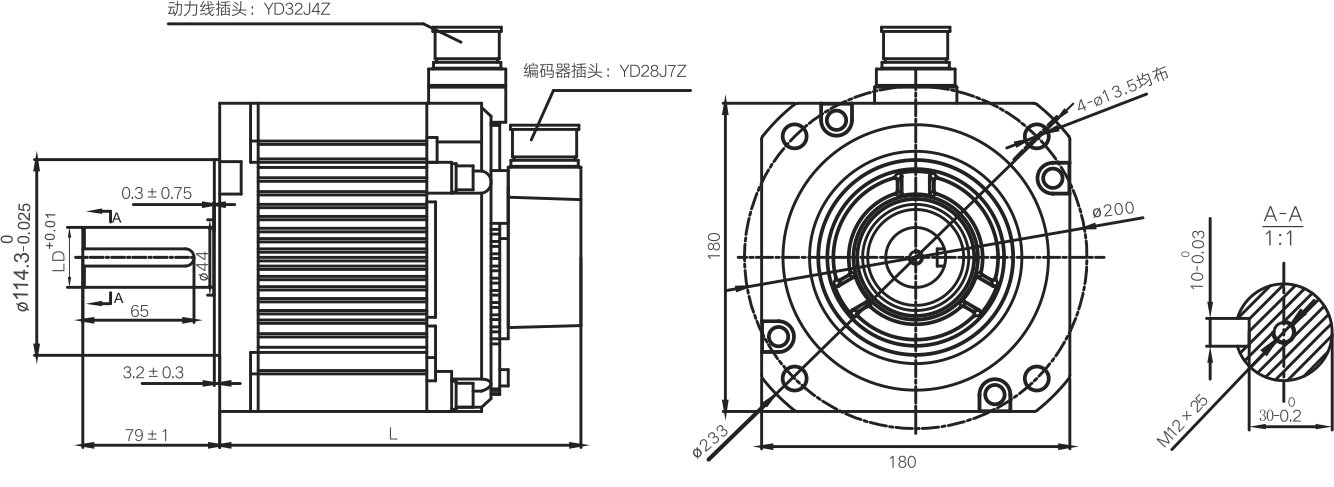

External dimensions

Dimension

Motor model	L without brake (mm)	L band brake (mm)	LD（mm）
DB180-18615I2-H	211	259	35
DB180-28415I2-H	240	288	35
DB180-35015I2-H	267	315	42
DB180-48015I2-H	310	358	42
