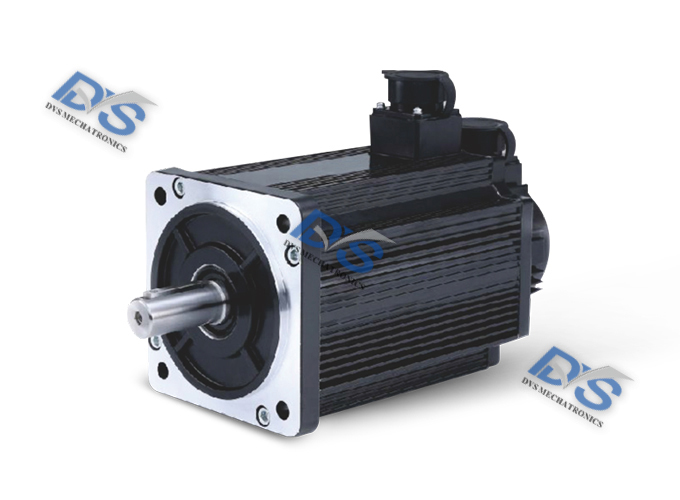

DN110 Series motors
DN series motors
Product Introduction
Power range: 600W~1800W Rated voltage: 220V Encoder configuration: 2500 line incremental encoder Application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.
Specification parameters
| Motor model | DN110-02030I2-H | DN110-04020I2-H | DN110-04030I2-H | DN110-05030I2-H | DN110-06020I2-H | DN110-06030I2-H |
| Rated power (KW) | 0.6 | 0.8 | 1.2 | 1.5 | 1.2 | 1.8 |
| Rated voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated current (A) | 2.5 | 3.5 | 5.0 | 6.0 | 4.5 | 6.0 |
| Instantaneous maximum current (A) | 2.0 | 4.0 | 4.0 | 5.0 | 6.0 | 6.0 |
| Rated torque (N.m) | 6.0 | 12 | 12 | 15 | 12 | 18 |
| Instantaneous maximum torque (N.m) | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 |
| Rated speed (rpm) | 56 | 79 | 54 | 62 | 83 | 60 |
| Back electromotive force (V/Krpm) | 0.8 | 1.14 | 0.8 | 0.83 | 1.3 | 1.0 |
| Torque constant (N.m/A) | 3.6 | 2.41 | 1.09 | 1.03 | 1.46 | 0.81 |
| Line resistance (Ohms) | 8.32 | 7.3 | 3.3 | 3.43 | 4.7 | 2.59 |
| Winding (line to line) inductance (mH) | 2.3 | 3.0 | 3.0 | 3.33 | 3.2 | 3.2 |
| Inertia of rotor (kg · m²) | 0.31x10-3 | 0.54x10-3 | 0.54x10-3 | 0.63x10-3 | 0.76x10-3 | 0.76x10-3 |
| Polar logarithm | 4.5 | 6.0 | 6.0 | 6.8 | 7.9 | 7.9 |
| Insulation level | Class F | |||||

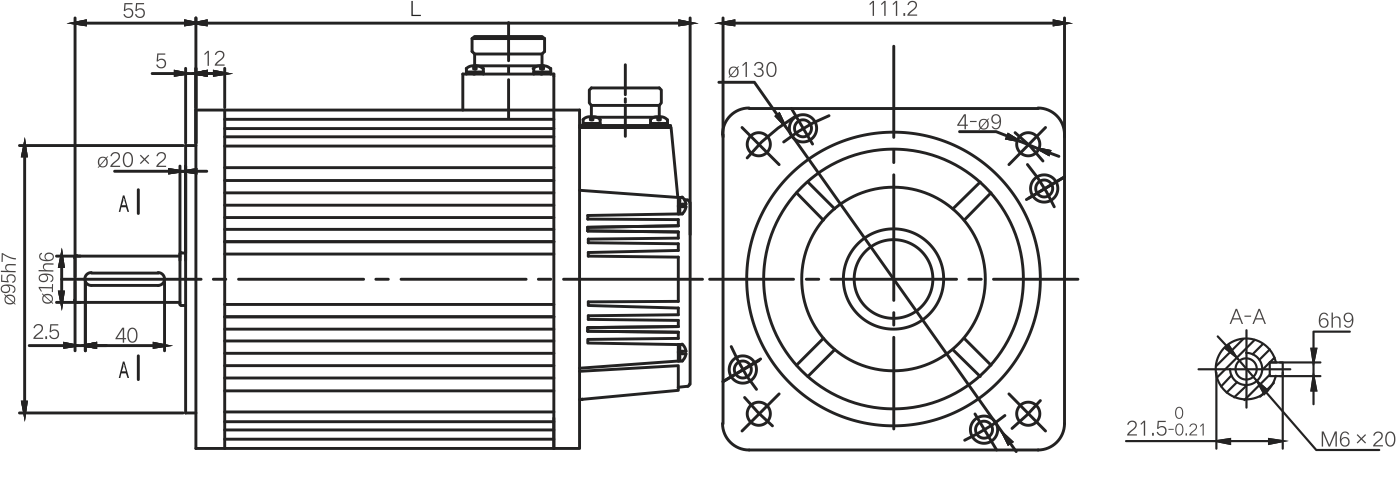

External dimensions
Dimension
| Motor model | L without brake (mm) | L band brake (mm) |
| DN110-02030I2-H | 159 | 215 |
| DN110-04020I2-H | 189 | 245 |
| DN110-04030I2-H | 189 | 245 |
| DN110-05030I2-H | 204 | 260 |
| DN110-06020I2-H | 219 | 275 |
| DN110-06030I2-H | 219 | 275 |
