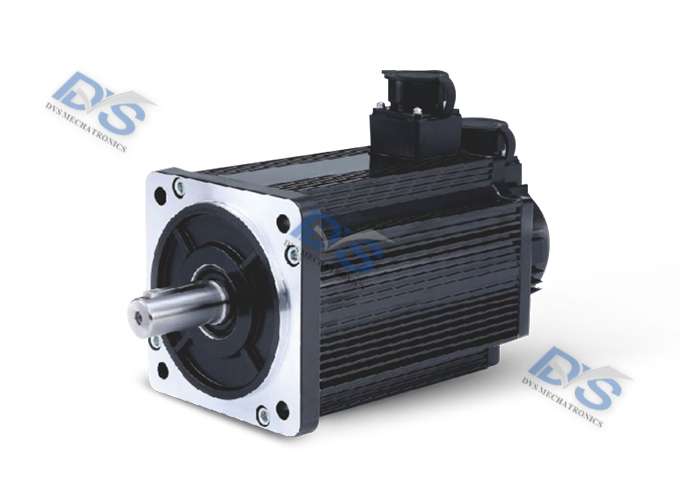

DN130 Series motors
DN series motors
Product Introduction
Power range: 1000W~3800W Rated voltage: 220V Encoder configuration: 2500 line incremental encoder Application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.
Specification parameters
| Motor model | DN130-04025I2-H | DN130-05025I2-H | DN130-06025I2-H | DN130-07725I2-H | DN130-10010I2-H | DN130-10015I2-H | DN130-10025I2-H | DN130-15015I2-H | DN130-15025I2-H |
| Rated power (KW) | 1.0 | 1.3 | 1.5 | 2.0 | 1.0 | 1.5 | 2.6 | 2.3 | 3.8 |
| Rated voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated current (A) | 4.0 | 5.0 | 6.0 | 7.5 | 4.5 | 6.0 | 10 | 9.5 | 13.5 |
| Instantaneous maximum current (A) | 4.0 | 5.0 | 6.0 | 7.7 | 10 | 10 | 10 | 15 | 15 |
| Rated torque (N.m) | 12 | 15 | 18 | 22 | 20 | 25 | 25 | 30 | 30 |
| Instantaneous maximum torque (N.m) | 2500 | 2500 | 2500 | 2500 | 1000 | 1500 | 2500 | 1500 | 2500 |
| Rated speed (rpm) | 72 | 68 | 65 | 68 | 140 | 103 | 70 | 114 | 67 |
| Back electromotive force (V/Krpm) | 1.0 | 1.0 | 1.0 | 1.06 | 2.2 | 1.6 | 1.0 | 1.58 | 1.11 |
| Torque constant (N.m/A) | 2.76 | 1.84 | 1.21 | 1.01 | 2.7 | 1.5 | 0.73 | 1.1 | 0.49 |
| Line resistance (Ohms) | 6.42 | 4.9 | 3.87 | 2.94 | 8.8 | 4.37 | 2.45 | 4.45 | 1.68 |
| Winding (line to line) inductance (mH) | 2.32 | 2.66 | 3.26 | 2.91 | 3.26 | 2.91 | 3.36 | 4.05 | 3.43 |
| Inertia of rotor (kg · m²) | 0.85x10-3 | 1.06x10-3 | 1.26x10-3 | 1.53x10-3 | 1.94x10-3 | 1.94x10-3 | 1.94x10-3 | 2.77x10-3 | 2.77x10-3 |
| Polar logarithm | 6.2 | 6.6 | 7.4 | 8.3 | 10.2 | 10.2 | 9.8 | 12.6 | 11.7 |
| Insulation level | Class F | ||||||||

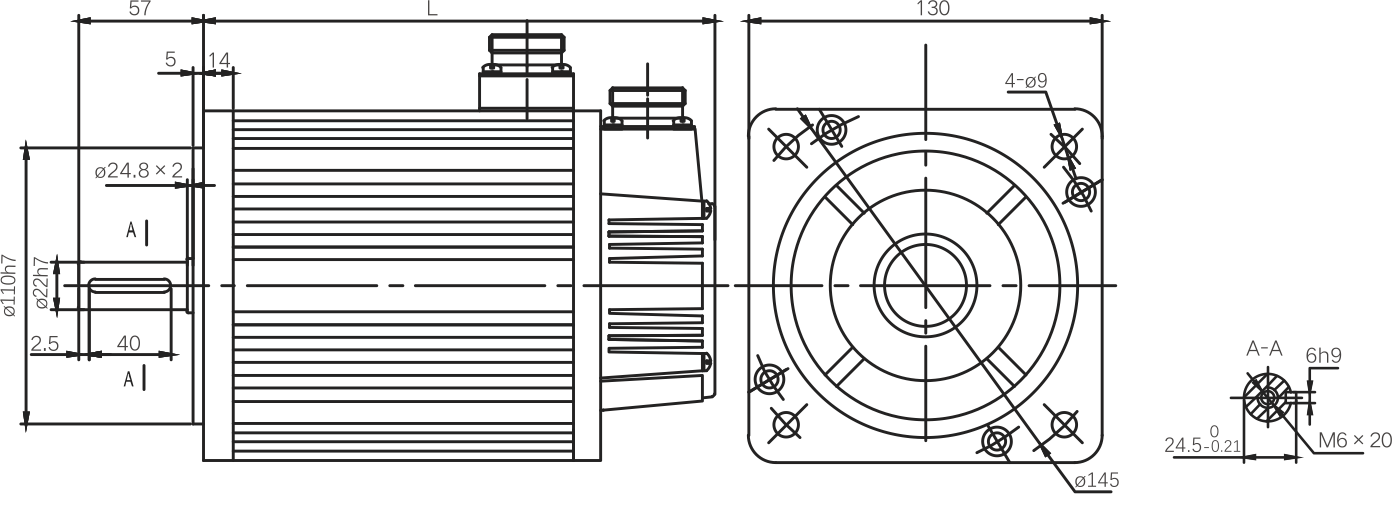

External dimensions
Dimension
| Motor model | L without brake (mm) | L band brake (mm) |
| DN130-04025I2-H | 166 | 236 |
| DN130-05025I2-H | 171 | 241 |
| DN130-06025I2-H | 179 | 249 |
| DN130-07725I2-H | 192 | 262 |
| DN130-10010I2-H | 213 | 283 |
| DN130-10015I2-H | 213 | 283 |
| DN130-10025I2-H | 209 | 279 |
| DN130-15015I2-H | 241 | 311 |
| DN130-15025I2-H | 231 | 301 |
Data download
