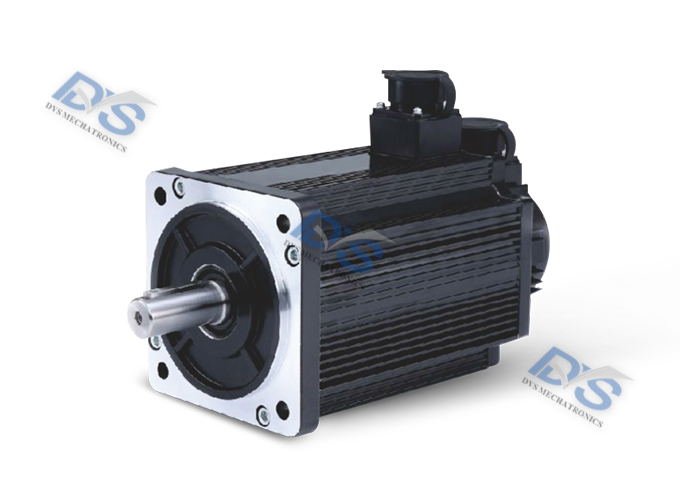

DN150 Series motors
DN series motors
Product Introduction
Power range: 3000W~5500W Rated voltage: 220V Encoder configuration: 2500 line incremental encoder Application areas: horizontal weaving machines, embroidery machines, printing machinery, CNC machine tools, automation, woodworking carving and other fields.
Specification parameters
| Motor model | DN150-15020I2-H | DN150-15025I2-H | DN150-18020I2-H | DN150-23020I2-H | DN150-27020I2-H | |||||
| Rated power (KW) | 3.0 | 3.8 | 3.6 | 4.7 | 5.5 | |||||
| Rated voltage (V) | 220 | 380 | 220 | 380 | 220 | 380 | 220 | 380 | 220 | 380 |
| Rated current (A) | 14 | 6.8 | 17 | 9.5 | 17 | 8.5 | 21 | 12 | 27 | 14.5 |
| Instantaneous maximum current (A) | 15 | 15 | 18 | 23 | 27 | |||||
| Rated torque (N.m) | 30 | 30 | 36 | 46 | 54 | |||||
| Instantaneous maximum torque (N.m) | 2500 | 2500 | 2000 | 2000 | 2000 | |||||
| Rated speed (rpm) | 70 | 141 | 59 | 106 | 71 | 141 | 72 | 126 | 64 | 127 |
| Back electromotive force (V/Krpm) | 1.07 | 2.2 | 0.88 | 1.58 | 1.05 | 2.12 | 1.09 | 1.91 | 1.0 | 1.86 |
| Torque constant (N.m/A) | 0.34 | 1.38 | 0.23 | 0.8 | 0.255 | 1.024 | 0.2 | 0.63 | 0.125 | 0.5 |
| Line resistance (Ohms) | 1.55 | 6.32 | 1.05 | 3.55 | 1.3 | 5.19 | 1.06 | 3.25 | 0.7 | 2.8 |
| Winding (line to line) inductance (mH) | 4.56 | 4.58 | 4.7 | 4.44 | 5.1 | 5.068 | 5.3 | 5.16 | 5.6 | 5.6 |
| Inertia of rotor (kg · m²) | 3.88x10-3 | 3.88x10-3 | 4.6x10-3 | 5.8x10-3 | 6.8x10-3 | |||||
| Polar logarithm | 17 | 17.2 | 15 | 15.2 | 17 | 17.2 | 20.4 | 21 | 22.7 | 23.5 |
| Insulation level | Class F | |||||||||
External dimensions
Dimension
| Motor model | L without brake (mm) | L band brake (mm) |
| DN150-15020I2-H | 230 | 303 |
| DN150-15025I2-H | 230 | 303 |
| DN150-18020I2-H | 248 | 321 |
| DN150-23020I2-H | 278 | 351 |
| DN150-27020I2-H | 302 | 375 |
