Features:

1. Adopting servo principle for full closed-loop control technology and a brand new 32-bit motor control dedicated DSP chip

2. Real time control of current output based on load operation to minimize motor heat generation

3. Can drive hybrid servo motors of the 57 series and 86 series;

4. Compared to open-loop stepper motors, it runs smoothly, has low vibration, and low noise

5. The maximum response frequency of the pulse can reach 200Kpps

6. Optoelectronic isolation signal input/output

7. High speed, high torque, high energy efficiency

8. The drive has an accurate operating position memory function, which does not require adjustment when stopped

9. It has protection against overcurrent, overvoltage, and tracking error exceeding tolerance

10. An external 4-digit digital display tube can be used to adjust parameters, electronic gear ratio, instruction filtering, and other parameters through the display panel

Application field:

This driver is a low-cost, high-performance servo system suitable for various large equipment and instruments. It performs better in equipment with low cost, low vibration, low noise, high precision, and high speed that users expect, such as engraving machines, wire stripping machines, marking machines, cutting machines, laser typesetting, plotters, CNC machine tools, automatic assembly equipment, etc.

Electrical parameters:

Usage environment and parameters:

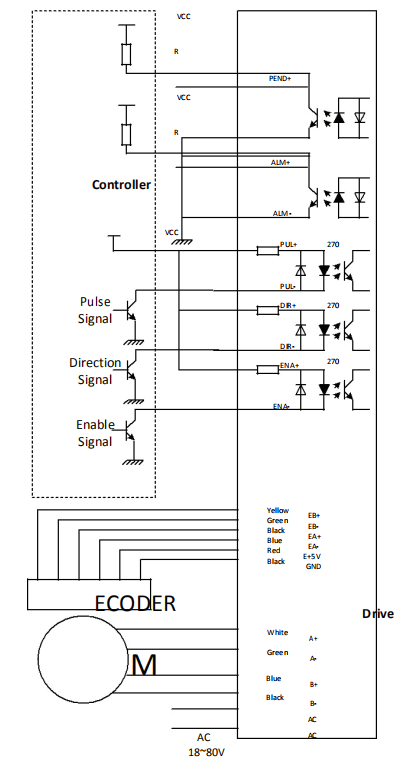

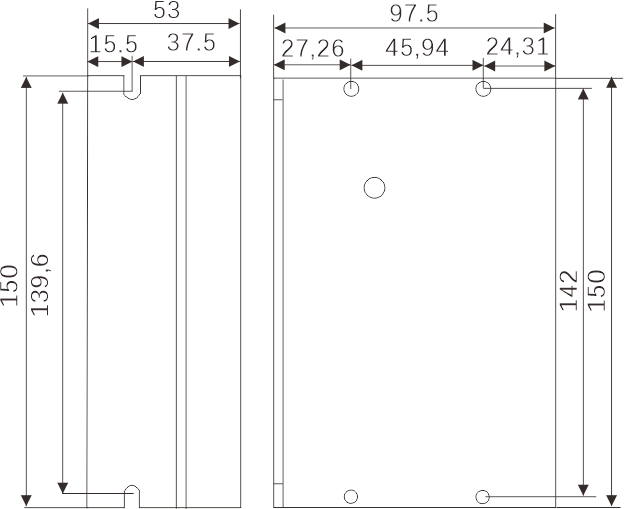

Application wiring

Driver interface and wiring instructions:

CN1 control signal input port

CN2 signal port

CN3 encoder feedback signal input port

CN4 interface power supply and motor line end

Port	Illustrate	Motor wire color	Remarks
A+	Stepper closed-loop motor terminal (color must match)	Black/White
A-		Red/Green
B+		Yellow/Blue
B-		Blue/Black
DC-	black		Power supply:  AC18-80V DC36V- 110V
DC+	red

CN5 RS485 Terminal Definition
