P100H-40 AC servo driver
P-series AC servo driver
Product Introduction
P1000H-40 AC servo driver, powerful internal motion control function, can complete position, speed, torque, return to origin and other control methods, supports I/O control and standard ModbusRTU protocol, can replace PLC or pulse module in some occasions, reduce application costs
Technical data
Features:
1. Easily connect and use with the touch screen (HMI)
2. Use PLC for RS485 motion control
3. Control directly through switches
4. Control directly through switches;
| Model | P100H-40 | |
| Type | High performance type | |
| Output power | 0.0KW~0.4KW | |
| Main circuit input power supply | Single phase AC220V-15%~+10% 50/60Hz | |
| Control mode | 0: Position control method; 1: Speed control mode; 2: Torque control method; 3: Hybrid control method for position and speed; 4: Position torque hybrid control method; 5: Speed torque hybrid control method | |
| Protection function | Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc | |
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | |
| Control input | 1: Servo enable, 2: Alarm clear, 3: CCW drive inhibit, 4: CW drive inhibit, 5: Deviation counter reset, 6: Command pulse inhibit, 7: CCW torque limit, 8: CW torque limit, etc | |
| Control output | Servo ready/servo alarm/positioning completed/mechanical braking, etc | |
| Energy consumption braking | Supports both built-in and external | |
| Applicable load | Less than 3 times the motor inertia | |
| Display Operation | 5-digit LED digital display with 4 operation buttons | |
| Communication methods | RS485 | |
| Position control | Input method | 0: Pulse+direction 1: CCW/CW pulse 2: A/B two-phase orthogonal pulse 3: Internal position control |
| Input electronic gear ratio | Gear ratio numerator: 1-32767 | |
| Gear ratio denominator: 1-32767 | ||

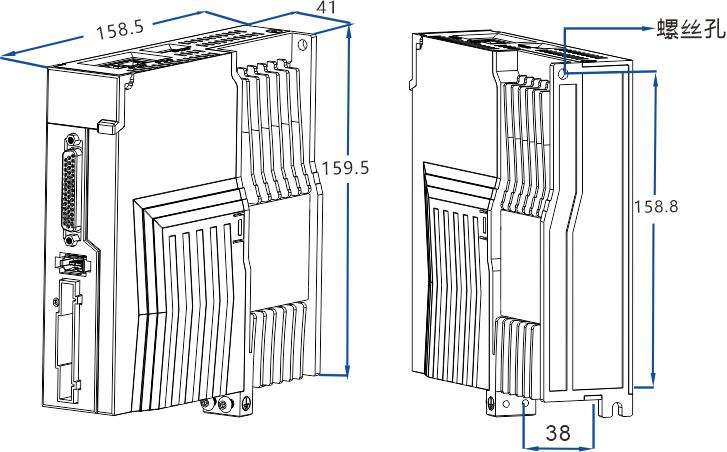

External dimensions
Wiring method

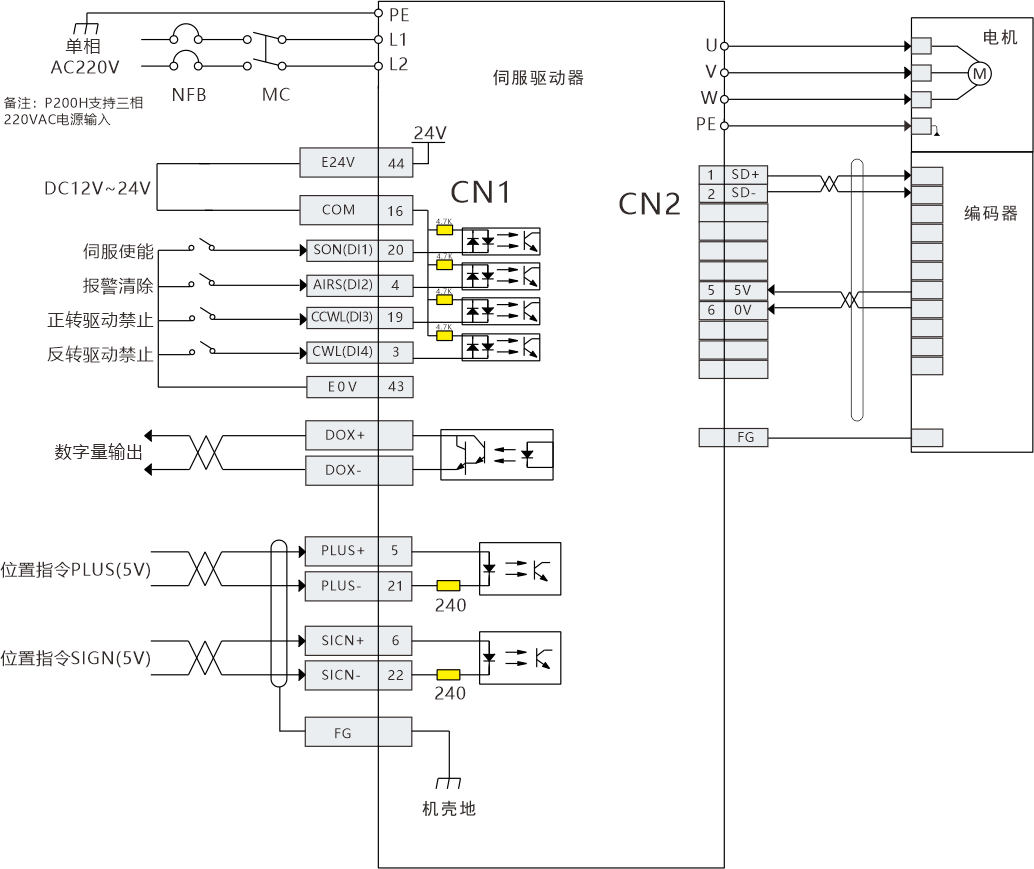

Position control mode wiring diagram:

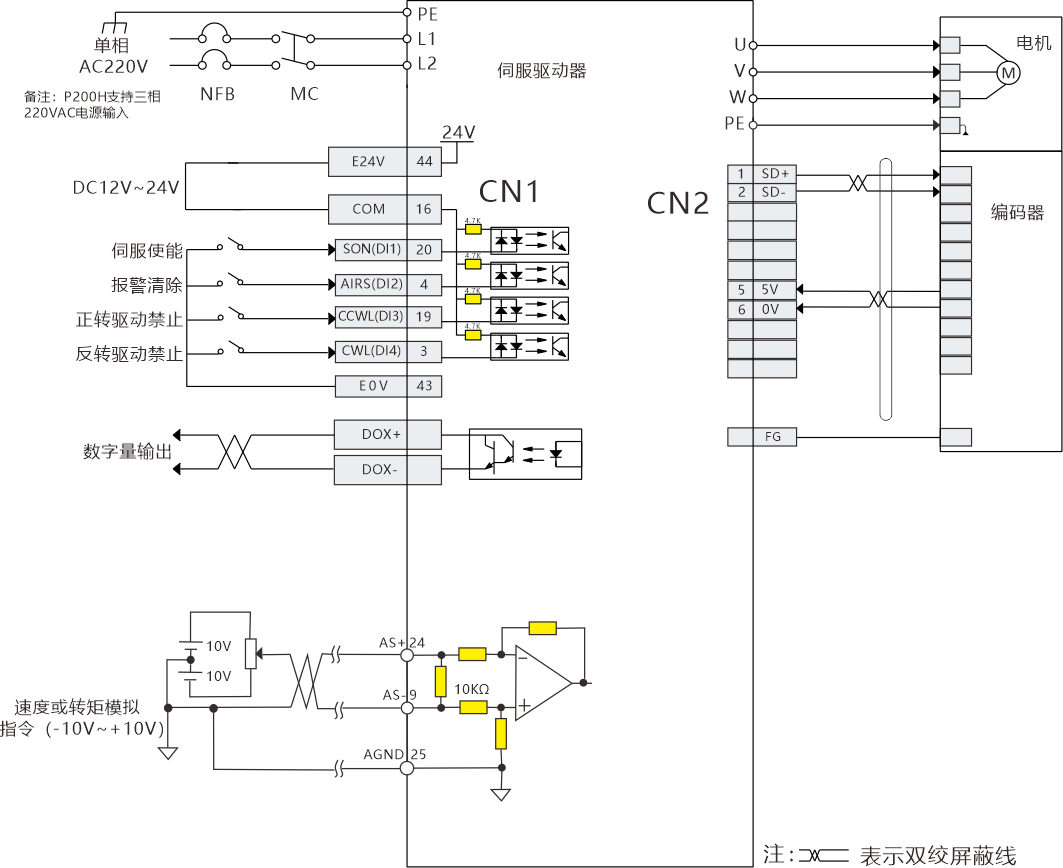

Speed/torque control mode wiring diagram:
Data download
