57mm series two-phase stepper motor
DV series two-phase hybrid stepper motor
Product Introduction
Project specification step accuracy ± 5% temperature rise -20 ℃~+50 ℃ insulation resistance 100M Ω Min 500VDC withstand voltage 500V AC 1min radial runout maximum 0.06mm (450g load) axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Body length （mm） | Phase current （A） | Resistance （Ω） | Inductance （mH） | Static torque （mH） | Rotor inertia （N.m） | Insulation resistance （g.cm²） | Motor weight （kg） |
| DV60HB68-01 | 1.8 | 68 | 4.0 | 0.41 | 1.1 | 2.4 | 560 | >500M(500V) | F-level |
| DV60HB84-01 | 1.8 | 84 | 4.0 | 0.5 | 2.04 | 3.0 | 900 | >500M(500V) | F-level |
Moment frequency characteristic curve

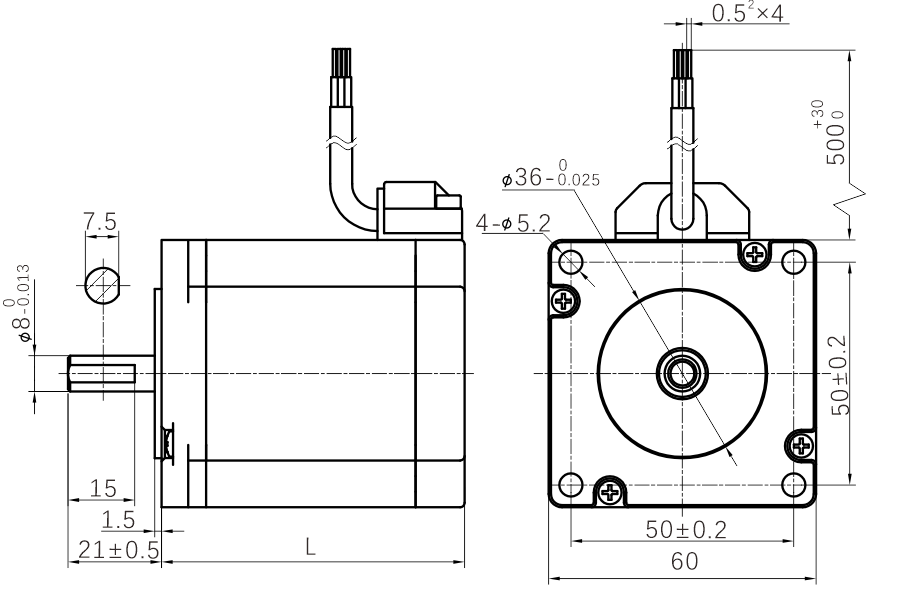

External dimensions
| Model | Shaft diameter（mm） | Shaft extension（mm） | Axial length（mm） |
| DV60HB68-01 | 8.0 | Platform 0.5x15 | 21 |
| DV60HB84-01 | 8.0 | Platform 0.5x15 | 21 |
Wiring method

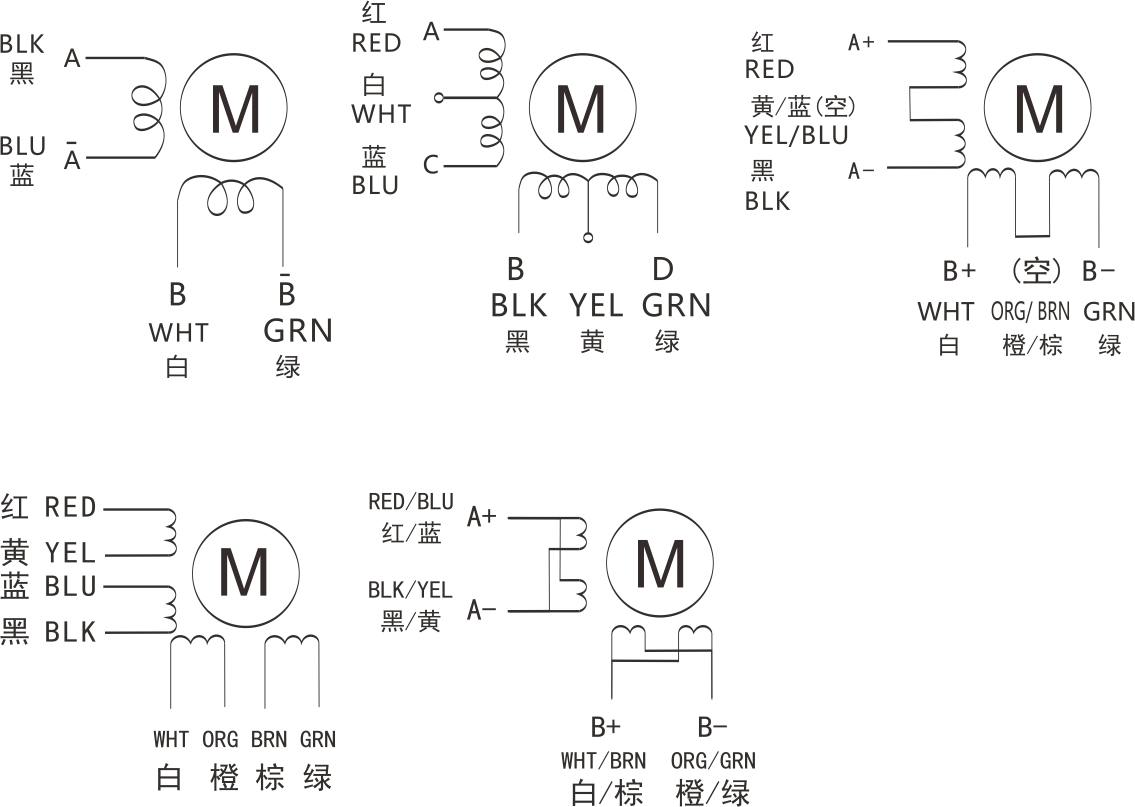

Wiring diagram
