P100S-40 AC servo driver

> PRODUCT >Pulse type AC servo series>P-series AC servo driver

P-series AC servo driver

Product Introduction

P1000S-40 AC servo driver, with powerful internal motion control function, can complete control methods such as position, speed, torque, and zero return. It supports I/O control and standard ModbusRTU protocol, and can replace PLC or pulse modules in some situations, reducing application costs.

Technical data

Features:

1. Easily connect and use with the touch screen (HMI)

2. Use PLC for RS485 motion control

3. Control directly through switches

4. Control directly through switches;

Model	P100S-40
Type	Simple type
Output power	0.05KW~0.4KW
Main circuit input power supply	Single phase AC220V-15%~+10% 50/60Hz
Control mode	0: Position control method; 1: Speed control mode; 2: Torque control method; 3: Hybrid control method for position and speed; 4: Position torque hybrid control method; 5: Speed torque hybrid control method
Protection function	Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc
Monitoring function	Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc
Control input	1: Servo enable, 2: Alarm clear, 3: CCW drive inhibit, 4: CW drive inhibit, 5: Deviation counter reset, 6: Command pulse inhibit, 7: CCW torque limit, 8: CW torque limit, etc
Control output	Servo ready/servo alarm/positioning completed/mechanical braking, etc
Energy consumption braking	Supports both built-in and external
Applicable load	Less than 3 times the motor inertia
Display Operation	5-digit LED digital display with 4 operation buttons
Communication methods	RS485
Position control	Input method	0: Pulse+direction 1: CCW/CW pulse 2: A/B two-phase orthogonal pulse 3: Internal position control
	Input electronic gear ratio	Gear ratio numerator: 1-32767
		Gear ratio denominator: 1-32767

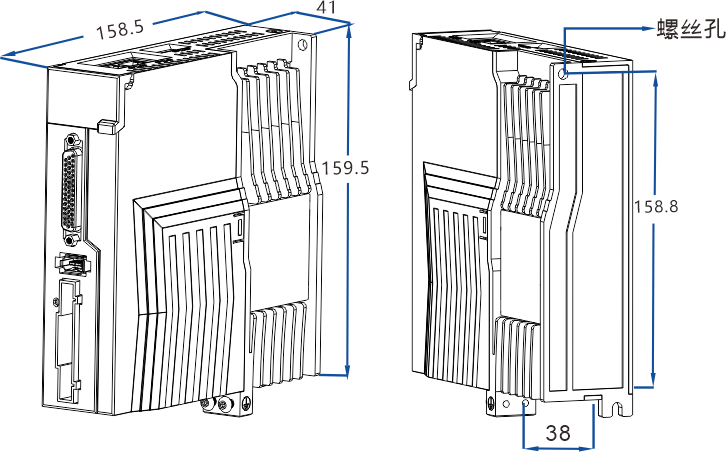

External dimensions

Wiring method

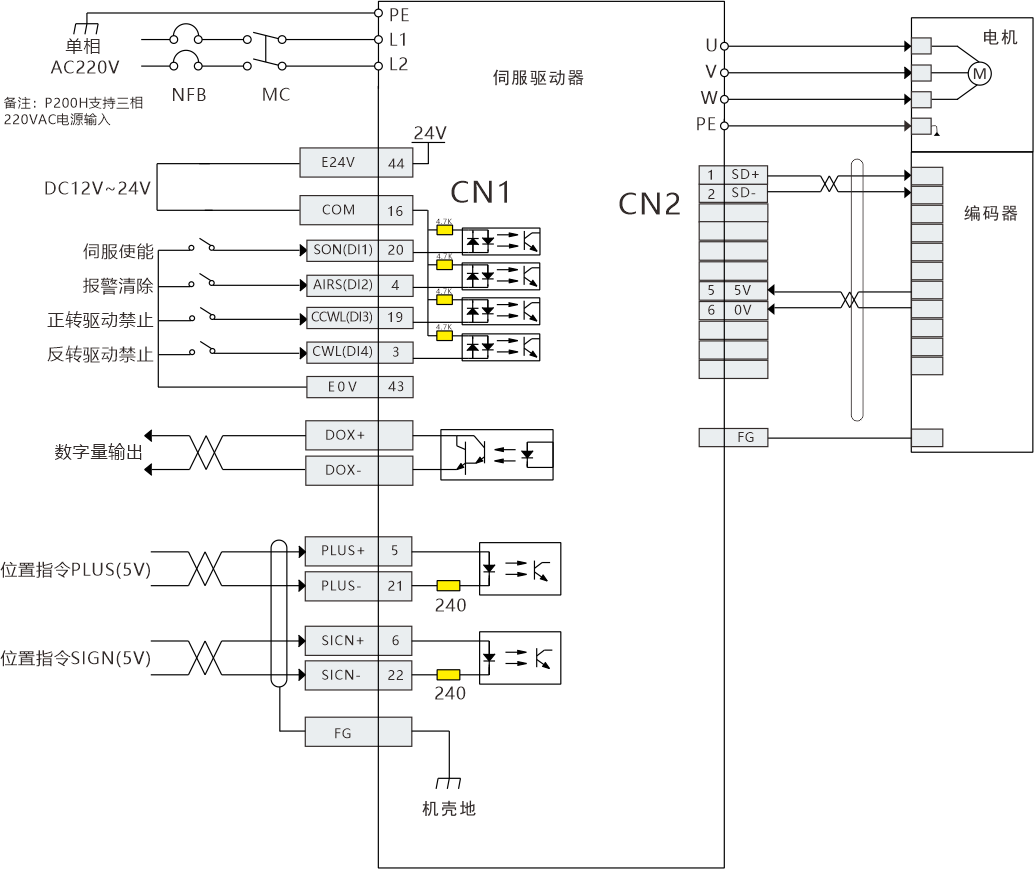

Position control mode wiring diagram:Wiring precautions:

1. The internal+24V power supply voltage range is 20V~28V, with a maximum working current of 100mA. If using an external 24V power supply, please connect the external power supply+24V to pin 16 (COM) and the external power supply 0V to pin 43 (E0V)

2. The DO output power supply needs to be provided by the user, with a power range of 5V~24V. The maximum allowable voltage of the DO port is DC30V, and the maximum allowable current is 50mA.

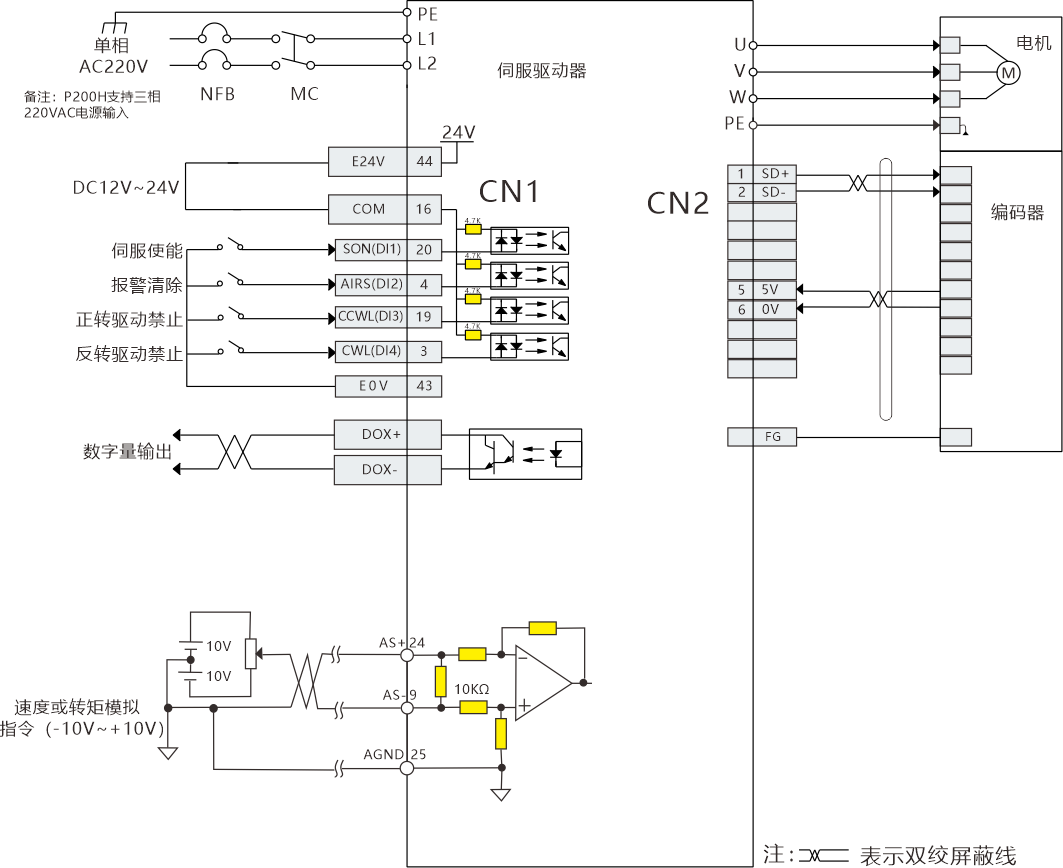

Speed/torque control mode wiring diagram:
