P300S AC servo driver
P-series AC servo driver
Product Introduction
P300S AC servo driver, powerful internal motion control function, can complete position, speed torque, return to origin and other control methods, supports/O control and standard ModbusRTU protocol, can replace PLC or pulse module in some situations, reduce application costs.
Technical data
Features:
1. Easily connect and use with the touch screen (HMI)
2. Use PLC for RS485 motion control
3. Control directly through switches
4. Control directly through switches;
| Model | P300S | |
| Type | Simple type | |
| Output power | 2KW~4.5KW | |
| Main circuit input power supply | Three phase AC220V/Three phase AC380V-15%~+10% 50/60Hz | |
| Control mode | 0: Position control method; 1: Speed control mode; 2: Torque control method; 3: Hybrid control method for position and speed; 4: Position torque hybrid control method; 5: Speed torque hybrid control method | |
| Protection function | Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc | |
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | |
| Control input | 1: Servo enable, 2: Alarm clear, 3: CCW drive inhibit, 4: CW drive inhibit, 5: Deviation counter reset, 6: Command pulse inhibit, 7: CCW torque limit, 8: CW torque limit, etc | |
| Control output | Servo ready/servo alarm/positioning completed/mechanical braking, etc | |
| Energy consumption braking | Supports both built-in and external | |
| Applicable load | Less than 3 times the motor inertia | |
| Display Operation | 5-digit LED digital display with 4 operation buttons | |
| Communication methods | RS485 | |
| Position control | Input method | 0: Pulse+direction 1: CCW/CW pulse 2: A/B two-phase orthogonal pulse 3: Internal position control |
| Input electronic gear ratio | Gear ratio numerator: 1-32767 | |
| Gear ratio denominator: 1-32767 | ||

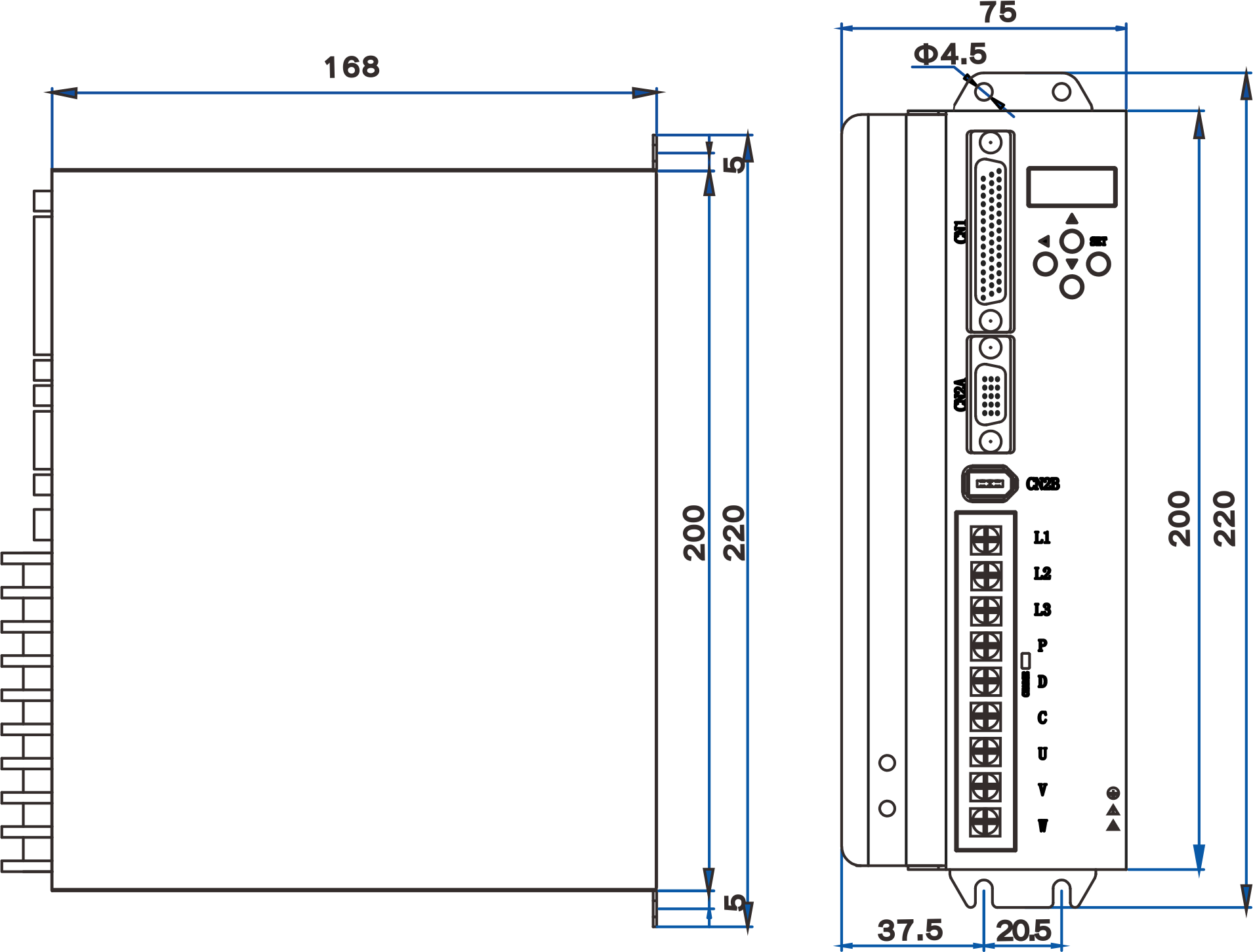

External dimensions
Wiring method

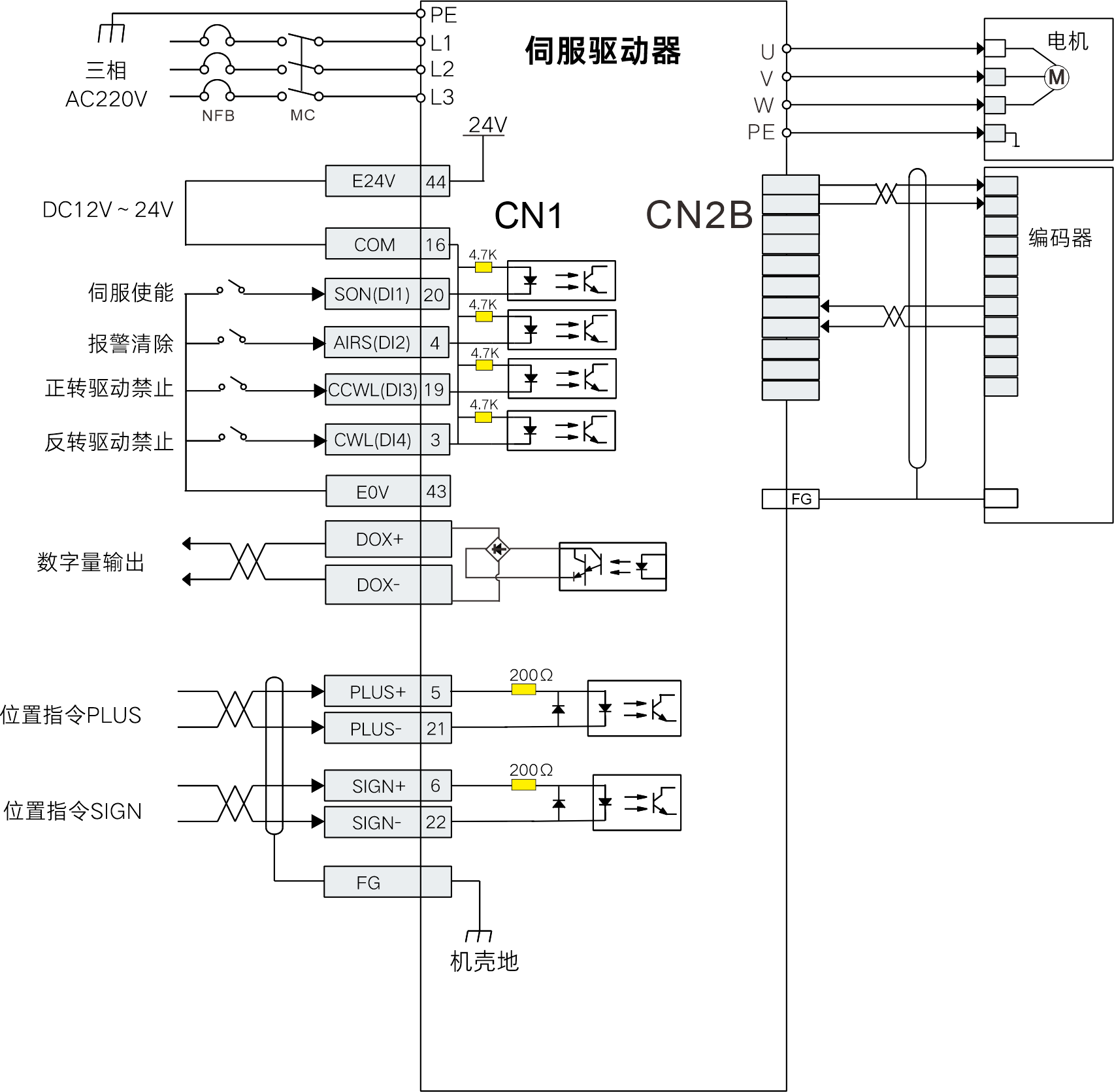

Position control mode wiring diagram

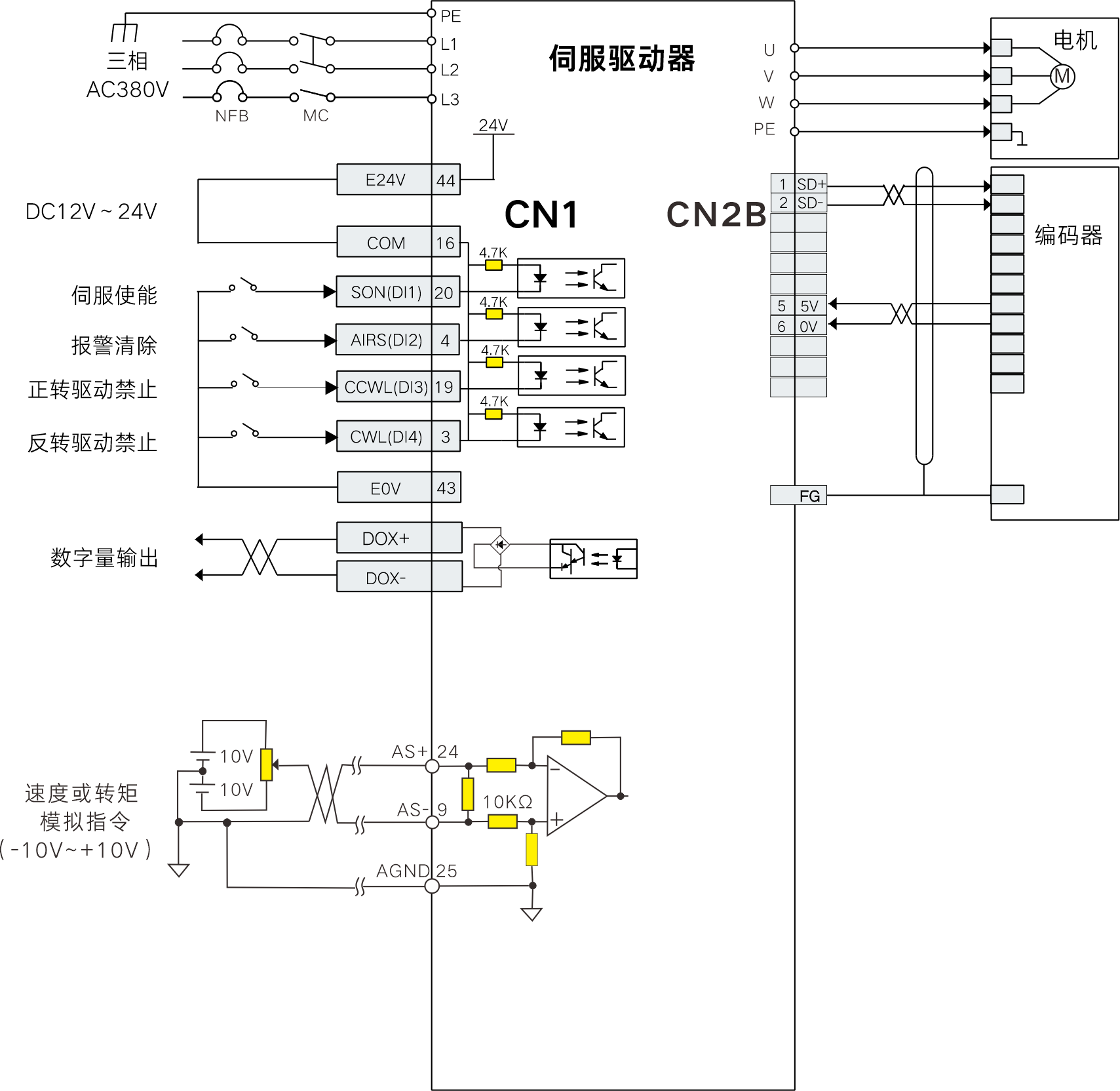

Speed/torque control mode wiring diagram
Accessory products
Economy type absolute value encoder series
| Servo motor | Servo driver | Supporting wires | |||||||
| Rated power (KW) | Model | flange (mm) | Rated torque (N.m) | Pulse type | EtherCAT type | CANopen type | Power line extension line | Encoder extension cable | |
| Economy | High performance | ||||||||
| 0.1 | DB40-00330A7-A | 40 | 0.32 | P100S-40 | P100H-40 | P100E-40 | P100S-40-CAN | P100P-XX-G-X-4PA | P100P-XX-G-X-9PA |
| 0.2 | DB60-00630A7-A | 60 | 0.64 | ||||||
| 0.4 | DB60-01330A7-A | 60 | 1.27 | ||||||
| 0.6 | DB60-01930A7-A | 60 | 1.91 | ||||||
| 0.75 | DB80-02430A7-A | 80 | 2.39 | P100S-75 | P100H-75 | P100E-75 | P100S-75-CAN | ||
| 1.0 | DB80-03230A7-A | 80 | 3.18 | ||||||
| 0.88 | DB110-04220A7-H | 110 | 4.2 | P200S | P200H | P200E | P200S-CAN | P200P-XX-G-X-4PH | E200P-XX-G-X-7PH |
| 1.1 | DB110-05420A7-H | 110 | 5.4 | ||||||
| 1.3 | DB110-06420A7-H | 110 | 6.4 | ||||||
| 1.13 | DB130-05420A7-H | 130 | 5.4 | ||||||
| 1.34 | DB130-06420A7-H | 130 | 6.4 | ||||||
| 1.57 | DB130-07520A7-H | 130 | 7.5 | ||||||
| 1.76 | DB130-08420A7-H | 130 | 8.4 | ||||||
| 2.4 | DB130-11520A7-H | 130 | 11.5 | P300S | -- | -- | -- | P300P-XX-G-X-4PH | |
| 3.1 | DB130-14620A7-H | 130 | 14.6 | ||||||
| 2.9 | DB180-18615I2-H | 180 | 18.6 | -- | P500H | P500E | -- | P500P-XX-G-X-4PH | |
| 4.4 | DB180-28415I2-H | 180 | 28.4 | ||||||
| 5.5 | DB180-35015I2-H | 180 | 35 | ||||||
| 7.5 | DB180-48015I2-H | 180 | 48 | ||||||
Incremental encoder series
| Servo motor | Servo driver | Supporting wires | |||||||
| Rated power (KW) | Model | flange (mm) | Rated torque (N.m) | Pulse type | EtherCAT type | CANopen type | Power line extension line | Encoder extension cable | |
| Economy | High performance | ||||||||
| 0.6 | DN110-02030I2-H | 110 | 2 | P200S | P200H | P200E | P200E-CAN | P200P-XX-G-X-4PH | ES200-XX-G-NA-15PH |
| 0.8 | DN110-04020I2-H | 110 | 4 | ||||||
| 1.2 | DN110-04030I2-H | 110 | 4 | ||||||
| 1.2 | DN110-06020I2-H | 110 | 6 | ||||||
| 1.5 | DN110-05030I2-H | 110 | 5 | ||||||
| 1.8 | DN110-06030I2-H | 110 | 6 | ||||||
| 1.3 | DN130-05025I2-H | 130 | 5 | ||||||
| 1.5 | DN130-06025I2-H | 130 | 6 | ||||||
| 1.5 | DN130-10015I2-H | 130 | 10 | ||||||
| 2.0 | DN130-07725I2-H | 130 | 7.7 | ||||||
| 1.0 | DN130-04025I2-H | 130 | 4 | ||||||
| 1.0 | DN130-10010I2-H | 130 | 10 | ||||||
| 2.3 | DN130-15015I2-H | 130 | 15 | P300S | -- | P500E | -- | P300P-XX-G-X-4PH | |
| 2.6 | DN130-10025I2-H | 130 | 10 | ||||||
| 3.8 | DN130-15025I2-H | 130 | 15 | ||||||
| 3.0 | DN150-15020I2-H | 150 | 15 | ||||||
| 3.6 | DN150-18020I2-H | 150 | 18 | ||||||
| 3.8 | DN150-15025I2-H | 150 | 15 | -- | P500H | P500E | -- | P500P-XX-G-X-4PDH | |
| 4.7 | DN150-23020I2-H | 150 | 23 | ||||||
| 5.5 | DN150-27020I2-H | 150 | 27 | ||||||
| 2.7 | DN180-17215I2-H | 180 | 17.2 | ||||||
| 2.9 | DN180-27010I2-H | 180 | 27 | ||||||
| 3.0 | DN180-19015I2-H | 180 | 19 | ||||||
| 3.7 | DN180-35010I2-H | 180 | 35 | ||||||
| 4.3 | DN180-27015I2-H | 180 | 27 | ||||||
| 4.5 | DN180-21520I2-H | 180 | 21.5 | ||||||
| 5.5 | DN180-35015I2-H | 180 | 35 | ||||||
| 7.5 | DN180-48015I2-H | 180 | 48 | ||||||
