P500H AC servo driver
P-series AC servo driver
Product Introduction
P500H AC servo driver, with powerful internal motion control function, can complete control methods such as position, speed torque, and return to origin. It supports/O control and standard ModbusRTU protocol, and can replace PLC or pulse modules in some situations, reducing application costs.
Technical data
Features:
1. Easily connect and use with the touch screen (HMI)
2. Use PLC for RS485 motion control
3. Control directly through switches
4. Control directly through switches;
| Model | P500H | ||||||
| Type | High performance type | ||||||
| Output power | 0.1KW~0.4KW | 0.1KW~0.4KW | 0.75KW~1KW | 0.75KW~1KW | 1KW~2KW | 2KW~4.5KW | 3.5KW~7.5KW |
| Main circuit input power supply | Single phase AAC220V-15%~+10% 50/60Hz | Single phase/three-phase AC220V-15%~+10% 50/60Hz | Three phase AC220V/Three phase AC380V-15%~+10% 50/60Hz | ||||
| Control mode | 0: Position control method; 1: Speed control mode; 2: Torque control method; 3: Hybrid control method for position and speed; 4: Position torque hybrid control method; 5: Speed torque hybrid control method | ||||||
| Protection function | Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc | ||||||
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | ||||||
| Control input | 1: Servo enable, 2: Alarm clear, 3: CCW drive inhibit, 4: CW drive inhibit, 5: Deviation counter reset, 6: Command pulse inhibit, 7: CCW torque limit, 8: CW torque limit, etc | ||||||
| Control output | Servo ready/servo alarm/positioning completed/mechanical braking, etc | ||||||
| Energy consumption braking | Supports both built-in and external | ||||||
| Applicable load | Less than 3 times the motor inertia | ||||||
| Display Operation | 5-digit LED digital display with 4 operation buttons | ||||||
| Communication methods | RS485 | ||||||
| Position control | Input method | 0: Pulse+direction 1: CCW/CW pulse 2: A/B two-phase orthogonal pulse 3: Internal position control | |||||
| Input electronic gear ratio | Gear ratio numerator: 1-32767 | ||||||
| Gear ratio denominator: 1-32767 | |||||||

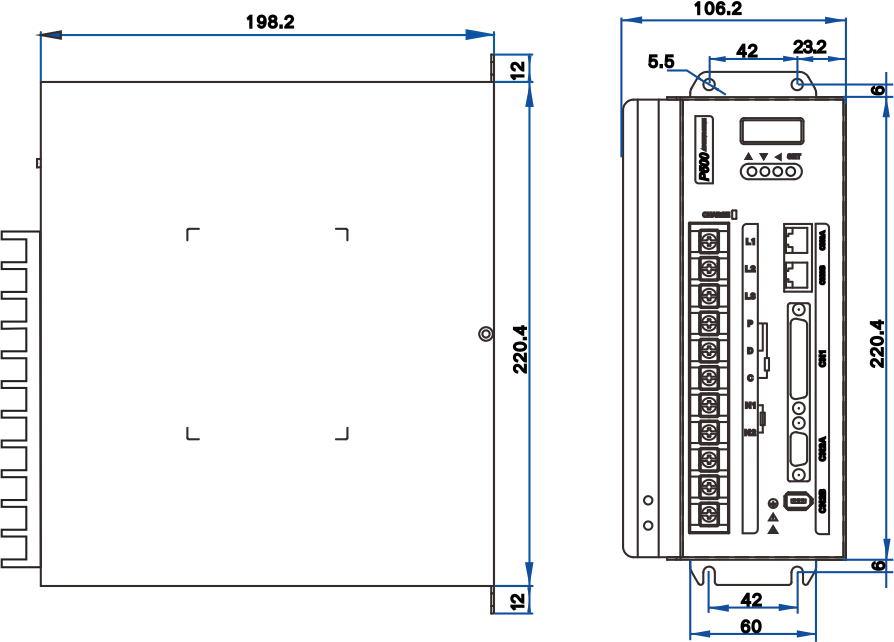

External dimensions
Wiring method

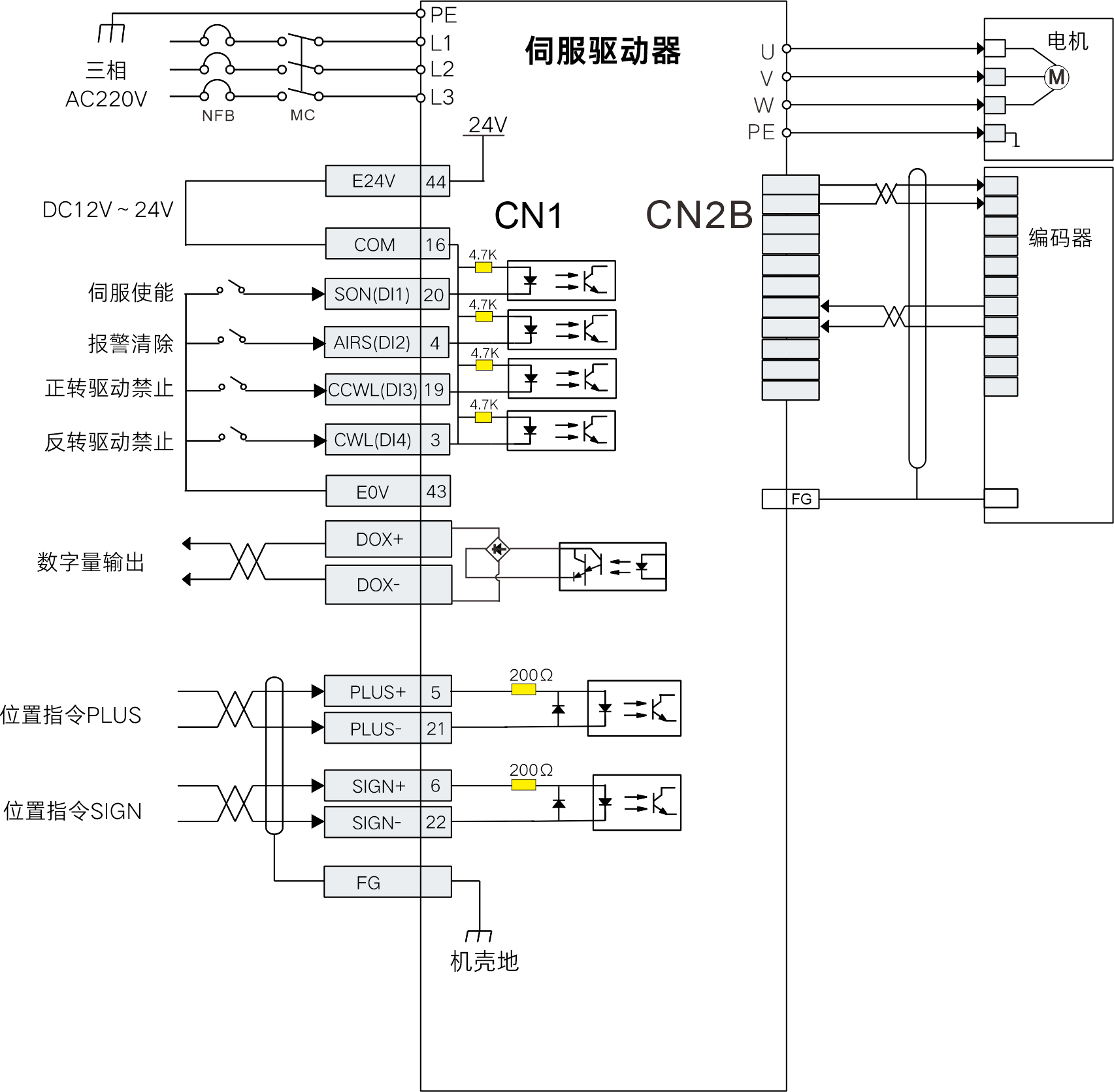

Position control mode wiring diagram

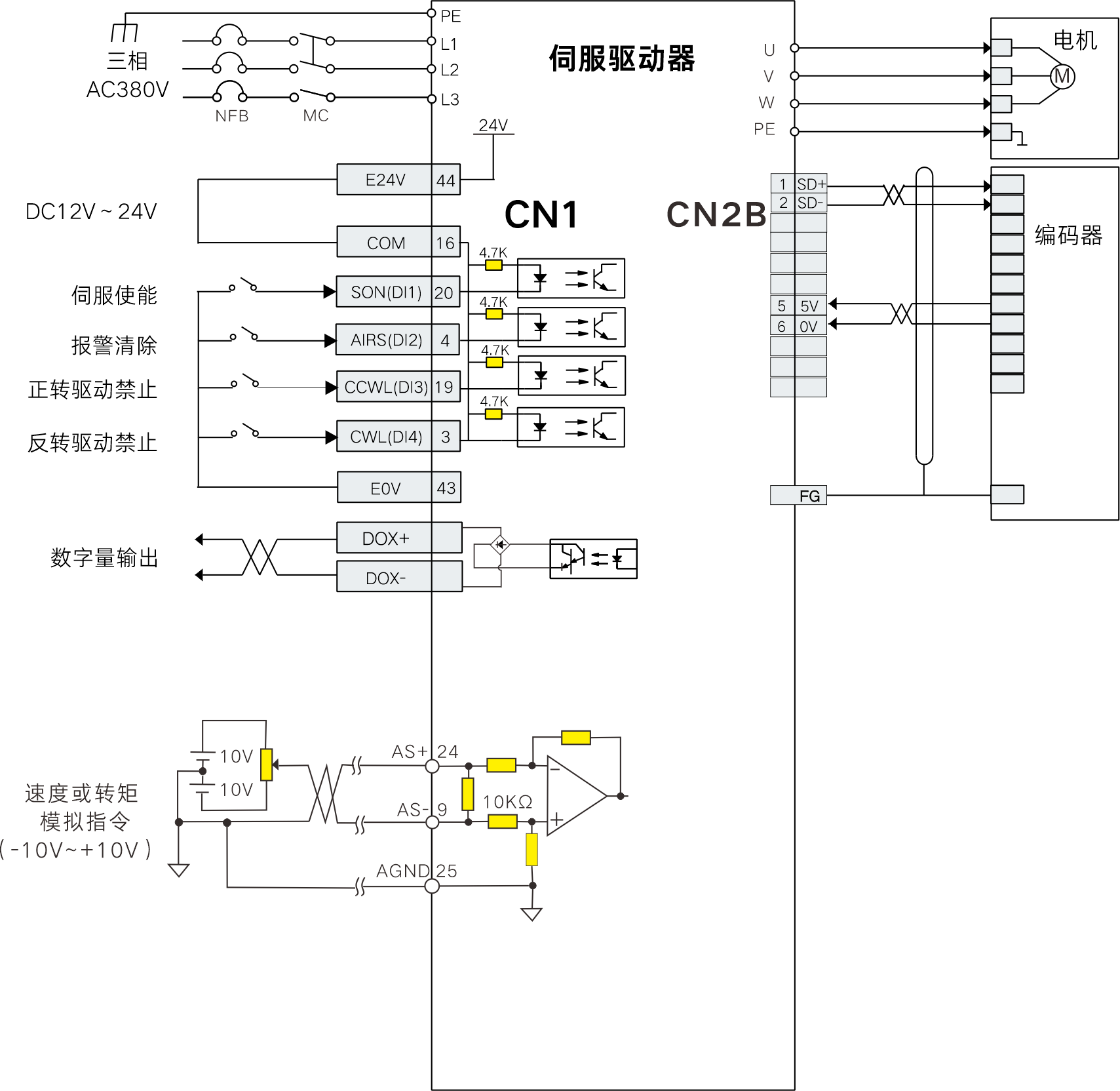

Speed/torque control mode wiring diagram
Accessory products
Economy type absolute value encoder series
| Servo motor | Servo driver | Supporting wires | |||||||
| Rated power (KW) | Model | flange (mm) | Rated torque (N.m) | Pulse type | EtherCAT type | CANopen type | Power line extension line | Encoder extension cable | |
| Economy | High performance | ||||||||
| 0.1 | DB40-00330A7-A | 40 | 0.32 | P100S-40 | P100H-40 | P100E-40 | P100S-40-CAN | P100P-XX-G-X-4PA | P100P-XX-G-X-9PA |
| 0.2 | DB60-00630A7-A | 60 | 0.64 | ||||||
| 0.4 | DB60-01330A7-A | 60 | 1.27 | ||||||
| 0.6 | DB60-01930A7-A | 60 | 1.91 | ||||||
| 0.75 | DB80-02430A7-A | 80 | 2.39 | P100S-75 | P100H-75 | P100E-75 | P100S-75-CAN | ||
| 1.0 | DB80-03230A7-A | 80 | 3.18 | ||||||
| 0.88 | DB110-04220A7-H | 110 | 4.2 | P200S | P200H | P200E | P200S-CAN | P200P-XX-G-X-4PH | E200P-XX-G-X-7PH |
| 1.1 | DB110-05420A7-H | 110 | 5.4 | ||||||
| 1.3 | DB110-06420A7-H | 110 | 6.4 | ||||||
| 1.13 | DB130-05420A7-H | 130 | 5.4 | ||||||
| 1.34 | DB130-06420A7-H | 130 | 6.4 | ||||||
| 1.57 | DB130-07520A7-H | 130 | 7.5 | ||||||
| 1.76 | DB130-08420A7-H | 130 | 8.4 | ||||||
| 2.4 | DB130-11520A7-H | 130 | 11.5 | P300S | -- | -- | -- | P300P-XX-G-X-4PH | |
| 3.1 | DB130-14620A7-H | 130 | 14.6 | ||||||
| 2.9 | DB180-18615I2-H | 180 | 18.6 | -- | P500H | P500E | -- | P500P-XX-G-X-4PH | |
| 4.4 | DB180-28415I2-H | 180 | 28.4 | ||||||
| 5.5 | DB180-35015I2-H | 180 | 35 | ||||||
| 7.5 | DB180-48015I2-H | 180 | 48 | ||||||
Incremental encoder series
| Servo motor | Servo driver | Supporting wires | |||||||
| Rated power (KW) | Model | flange (mm) | Rated torque (N.m) | Pulse type | EtherCAT type | CANopen type | Power line extension line | Encoder extension cable | |
| Economy | High performance | ||||||||
| 0.6 | DN110-02030I2-H | 110 | 2 | P200S | P200H | P200E | P200E-CAN | P200P-XX-G-X-4PH | ES200-XX-G-NA-15PH |
| 0.8 | DN110-04020I2-H | 110 | 4 | ||||||
| 1.2 | DN110-04030I2-H | 110 | 4 | ||||||
| 1.2 | DN110-06020I2-H | 110 | 6 | ||||||
| 1.5 | DN110-05030I2-H | 110 | 5 | ||||||
| 1.8 | DN110-06030I2-H | 110 | 6 | ||||||
| 1.3 | DN130-05025I2-H | 130 | 5 | ||||||
| 1.5 | DN130-06025I2-H | 130 | 6 | ||||||
| 1.5 | DN130-10015I2-H | 130 | 10 | ||||||
| 2.0 | DN130-07725I2-H | 130 | 7.7 | ||||||
| 1.0 | DN130-04025I2-H | 130 | 4 | ||||||
| 1.0 | DN130-10010I2-H | 130 | 10 | ||||||
| 2.3 | DN130-15015I2-H | 130 | 15 | P300S | -- | P500E | -- | P300P-XX-G-X-4PH | |
| 2.6 | DN130-10025I2-H | 130 | 10 | ||||||
| 3.8 | DN130-15025I2-H | 130 | 15 | ||||||
| 3.0 | DN150-15020I2-H | 150 | 15 | ||||||
| 3.6 | DN150-18020I2-H | 150 | 18 | ||||||
| 3.8 | DN150-15025I2-H | 150 | 15 | -- | P500H | P500E | -- | P500P-XX-G-X-4PDH | |
| 4.7 | DN150-23020I2-H | 150 | 23 | ||||||
| 5.5 | DN150-27020I2-H | 150 | 27 | ||||||
| 2.7 | DN180-17215I2-H | 180 | 17.2 | ||||||
| 2.9 | DN180-27010I2-H | 180 | 27 | ||||||
| 3.0 | DN180-19015I2-H | 180 | 19 | ||||||
| 3.7 | DN180-35010I2-H | 180 | 35 | ||||||
| 4.3 | DN180-27015I2-H | 180 | 27 | ||||||
| 4.5 | DN180-21520I2-H | 180 | 21.5 | ||||||
| 5.5 | DN180-35015I2-H | 180 | 35 | ||||||
| 7.5 | DN180-48015I2-H | 180 | 48 | ||||||
