86mm series two-phase stepper motor
DV series two-phase hybrid stepper motor
Product Introduction
Project specification step accuracy+5% temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ insulation resistance 100M Ω Min500VDC withstand voltage 500VAC 1 minute radial runout maximum 0.06mm (450g load) axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Body length （mm） | Rated voltage （V） | Rated current （A） | Phase Resistance （Ω） | Phase inductance （mH） | Holding torque （N.m） | Moment of inertia （g.cm²） | Motor weight （kg） | Number of motor lines | ||
| Four parallel output lines | Four outgoing lines in series | Six outgoing lines | ||||||||||
| DV86HB65-01 | 1.8 | 65 | 4 | 4.0 | 3.0 | 4.2 | 1.3 | 3.3 | 3.3 | 1000 | 4 | 2 |
| DV86HB80-01 | 1.8 | 80 | 4 | 6.0 | 3.0 | 4.2 | 0.9 | 3 | 4.5 | 1400 | 4 | 2.5 |
| DV86HB98-01 | 1.8 | 98 | 4.4 | 6.0 | 4.0 | 4.2 | 1 | 4.3 | 7.5 | 2100 | 4 | 3.4 |
| DV86HB118-01 | 1.8 | 118 | 6 | 6.0 | 4.0 | 4.2 | 1.3 | 6.4 | 8.5 | 2700 | 4 | 4.1 |
| DV86HB128-01 | 1.8 | 128 | 6.5 | 6.0 | 6.0 | 4.2 | 1.4 | 7.3 | 10 | 3200 | 4 | 4.5 |
| DV86HB150-01 | 1.8 | 150 | 7.5 | 4.0 | 4.0 | 4.2 | 1.65 | 9.7 | 12 | 4000 | 4 | 5.4 |
| DV86HB156-01 | 1.8 | 156 | 6.5 | 4.2 | 4.2 | 4.2 | 1.4 | 9 | 12.5 | 4000 | 4 | 5.8 |

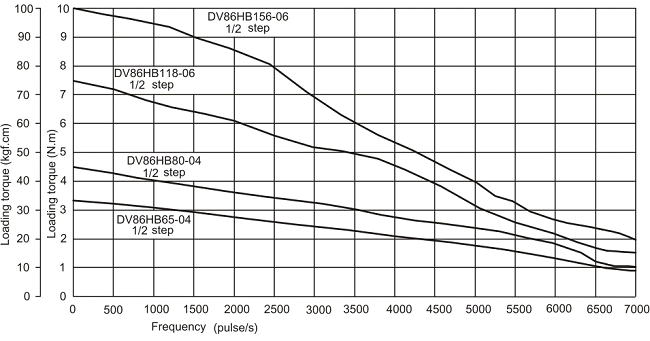

Moment frequency characteristic curve
Test conditions
Drive model: DV278, subdivided into 400 pulses per revolution
Test voltage: DC 48V

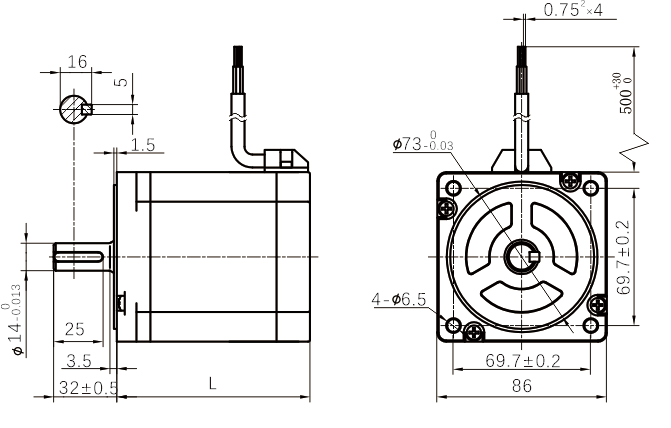

External dimensions
| Model | Shaft diameter（mm） | Shaft extension（mm） | Axial length（mm） |
| DV86HB80-01 | 12.7 | Flat key 5x25 | 32 |
| DV86HB98-01 | 14 | Flat key 5x25 | 32 |
| DV86HB118-01 | 14 | Flat key 5x25 | 32 |
| DV86HB156-01 | 15.875 | Flat key 5x25 | 32 |

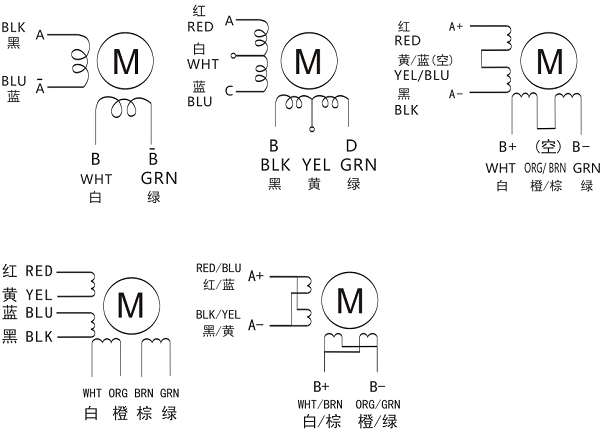

Wiring method
Wiring diagram line length 400mm
