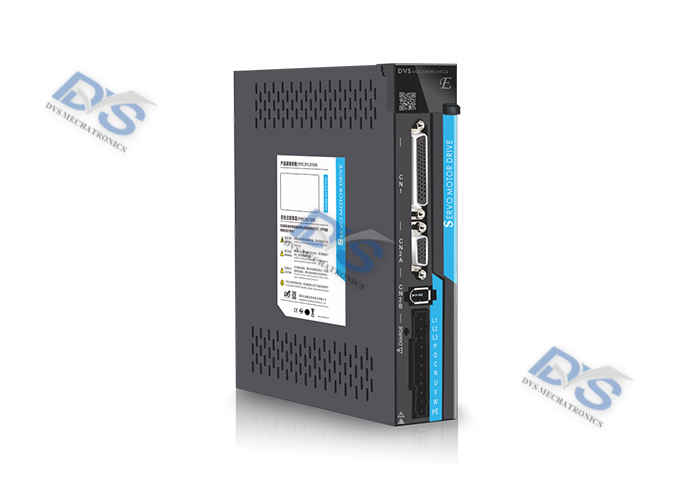

P200E AC servo driver
P-series bus servo driver
Product Introduction
The P200E series servo is a bus type servo driver that adds bus communication function on the basis of the P series high-performance AC servo driver. Using the EtherCAT bus communication interface and based on EtherCAT slave technology, the servo system achieves real-time control and data transmission at a transmission rate of 100Mb/s. This driver has rich input and output interfaces and supports CSP, CSV, CST, PP, PV, PT, and HM operating modes. Compared with traditional pulse servo drives, this drive is particularly suitable for applications in long-distance, multi axis linkage situations, which can greatly reduce wiring and enhance the reliability of the drive operation.
Technical data
Features:
1. The working voltage is AC input voltage of AC220V ± 10%, single-phase/three-phase, 50/60Hz
2. Supports EtherCAT communication protocol, with addresses automatically allocated through the main station
3.8 single ended common positive isolation input function, with a maximum input frequency of 10KHz and an input voltage of 24V
4.6 optocoupler isolated output, with a maximum output capacity of 50mA and a maximum withstand voltage of 30Vdc.
| Model | P200E | |
| Output power | 1KW~3KW | |
| Main circuit input power supply | Single phase/three-phase AC220V-15%~+10% 50/60Hz | |
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | |
| Control mode | 0: Position control mode 1: Speed control mode 2: Trial operation control mode 3: JOG control mode 6: Torque control mode | |
| Protection function | Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc | |
| Control output | Servo ready output/Servo alarm output/Positioning completed output/Mechanical brake output | |
| Control input | 1: Negative limit 2: Positive limit 3: Origin signal 4: CCW drive inhibit 5: CW drive inhibit 6: Deviation counter reset 7: Command pulse inhibit 8: CCW torque limit 9: CW torque limit | |
| Energy consumption braking | Internal/External | |
| Applicable load | Less than 3 times the motor inertia | |
| Display Operation | 5-digit LED digital display with 4 operation buttons | |
| Position control | Input method | Bus based communication |
| Input electronic gear ratio | Gear ratio shaft accuracy: 1-131072 | |
| Gear ratio motor accuracy: absolute values of 17 and 23 bits | ||

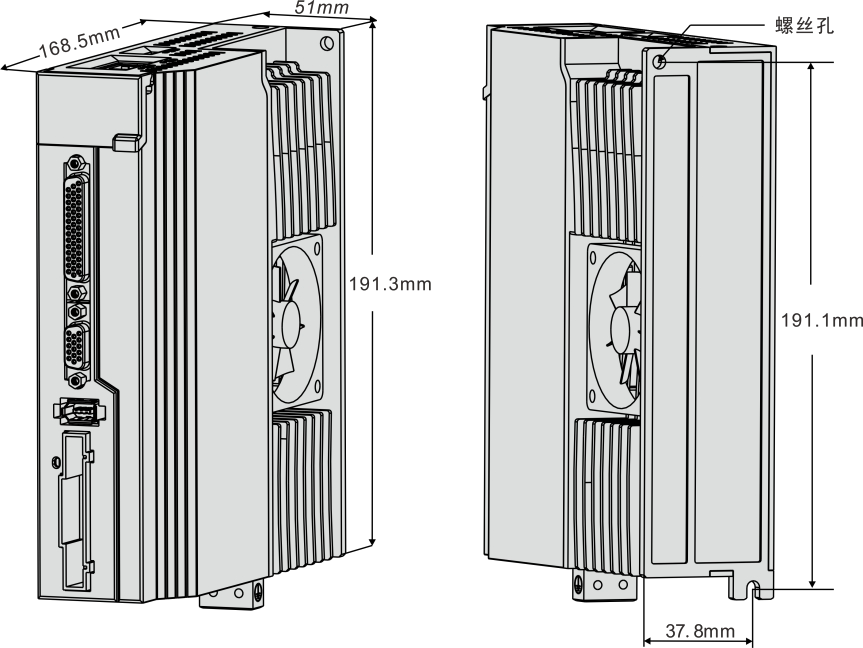

External dimensions

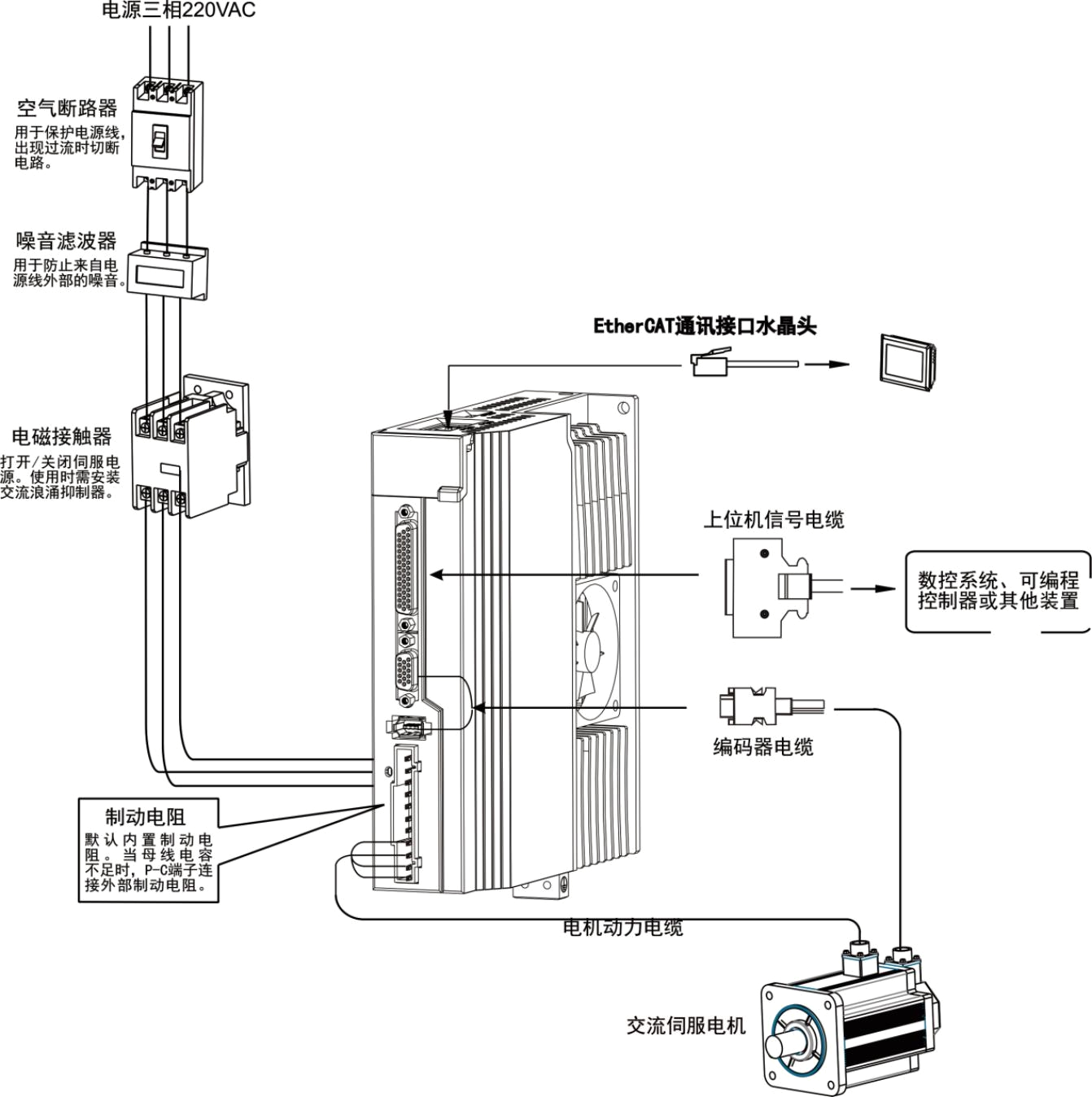

Wiring method
