PX0XE

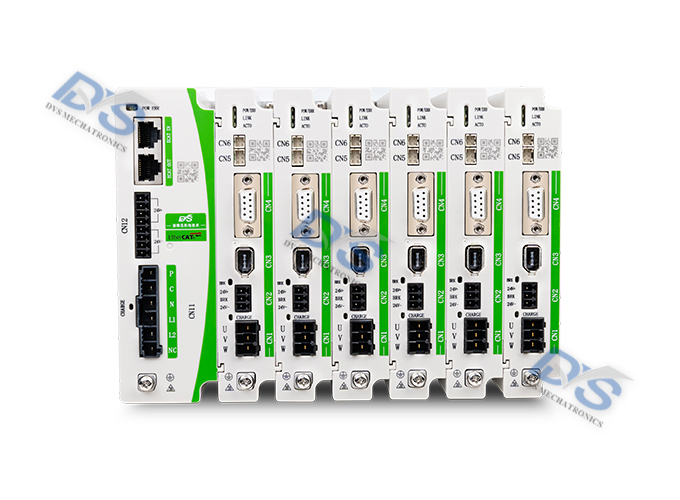

PX series multi axis bus servo driver
Product Introduction
Technical data
Product model:
PX103E 、PX104E、 PX105E 、PX106E、 PX203E、 PX204E、 PX205E、 PX206E
Features:
Power range: 100W~3000W
Compact size, high integration, and good stability
Supports bus communication methods, with EtherCAT and CANopen bus communication options available
Supports absolute value system and can automatically recognize motor parameters
| Overall model | PX103E | PX104E | PX105E | PX106E |
| Total power (Max) | 1.0kW | 1.2kW | 1.5kW | 2.0kW |
| Power module model | PX10XE-POW | PX10XE-POW | PX10XE-POW | PX10XE-POW |
| Power module power | 1.0kW | 1.2kW | 1.5kW | 2.0kW |
| Axis module model | P10XE-DRV | P10XE-DRV | P10XE-DRV | P10XE-DRV |
| Axis module power | 750W | 750W | 750W | 750W |
| Main circuit input power supply | Single phase AC220V-15%~+10% 50/60Hz | |||
| Control mode | 0: Position control mode 1: Speed control mode 2: Trial operation control mode 3: JOG control mode 6: Torque control mode | |||
| Protection function | Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation | |||
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | |||
| Control input | 1: Negative limit 2: Positive limit 3: Origin signal 4: CCW drive inhibit 5: CW drive inhibit 6: Deviation counter reset 7: Command pulse inhibit 8: CCW torque limit 9: CW torque limit | |||
| Control output | Mechanical braking | |||
| Energy consumption braking | External | |||
| Applicable load | Less than 3 times the motor inertia | |||
| Display Operation | External handheld box (5-digit LED digital display, 4 operation buttons) | |||
| Communication methods | EtherCAT | |||
| Position control | Input electronic gear ratio | Load axis resolution: 1-2097152 | ||
| Motor encoder resolution: 21 bit absolute encoder | ||||
| Overall model | PX203E | PX204E | PX206E | |
| Total power (Max) | 1.9kW | 2.5kW | 3.8kW | |
| Power module model | PX20XE-POW | PX20XE-POW | PX20XE-POW | |
| Power module power | 1.9kW | 2.5kW | 3.8kW | |
| Axis module model | P20XE-DRV | P20XE-DRV | P20XE-DRV | |
| Axis module power | 1.5kW | 1.5kW | 1.5kW | |
| Main circuit input power supply | Single phase AC220V-15%~+10% 50/60Hz | |||
| Control mode | 0: Position control method; 1: Speed control mode; 2: Torque control method; 3: Hybrid control method for position and speed; 4: Position torque hybrid control method; 5: Speed torque Kunhe control method | |||
| Protection function | Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation | |||
| Monitoring function | Speed/current position/command pulse accumulation/position deviation/motor torque/motor current/operating status, etc | |||
| Control input | 1: Negative limit 2: Positive limit 3: Origin signal 4: CCW drive inhibit 5: CW drive inhibit 6: Deviation counter reset 7: Command pulse inhibit 8: CCW torque limit 9: CW torque limit | |||
| Control output | Mechanical braking | |||
| Energy consumption braking | External | |||
| Applicable load | Less than 3 times the motor inertia | |||
| Display Operation | External handheld box (5-digit LED digital display, 4 operation buttons) | |||
| Communication methods | EtherCAT | |||
| Position control | Input electronic gear ratio | Load axis resolution: 1-2097152 | ||
| Motor encoder resolution: 21 bit absolute encoder | ||||
External dimensions
Accessory products
| Machine base | Model | Power (W) | Speed (rpm) | Adapt driver | Paired with encoder |
| 40mm | 40-00130xx-(B) | 50 | 3000 | PX10XS | 17bit single/multi turn absolute encoder |
| 40-00330xx-(B) | 100 | 3000 | PX10XS | ||
| 60mm | 60-00630xx-(B) | 200 | 3000 | PX10XS | |
| 60-01330xx-(B) | 400 | 3000 | PX10XS | ||
| 60-01930xx-(B) | 600 | 3000 | PX10XS | ||
| 80mm | 80-01330xx-(B) | 400 | 3000 | PX10XS | |
| 80-02430xx-(B) | 750 | 3000 | PX10XS | ||
| 80-03520xx-(B) | 730 | 2000 | PX10XS | ||
| 80-04025xx-(B) | 1000 | 2500 | PX10XS | ||
| 90mm | 90-02430xx-(B) | 750 | 3000 | PX10XS | |
| 90-03520xx-(B) | 730 | 2000 | PX10XS | ||
| 90-04025xx-(B) | 1000 | 2500 | PX10XS | ||
| 110mm | 110-02030xx-(B) | 600 | 3000 | PX20XS | |
| 110-04020xx-(B) | 800 | 2000 | PX20XS | ||
| 110-04030xx-(B) | 1200 | 3000 | PX20XS | ||
| 110-05030xx-(B) | 1500 | 3000 | PX20XS | ||
| 110-06020xx-(B) | 1200 | 2000 | PX20XS | ||
| 110-06030xx-(B) | 1800 | 3000 | PX20XS | ||
| 130mm | 130-04025xx-(B) | 1000 | 2500 | PX20XS | |
| 130-10010xx-(B) | 1000 | 1000 | PX20XS | ||
| 130-05025xx-(B) | 1300 | 2500 | PX20XS | ||
| 130-06025xx-(B) | 1500 | 2500 | PX20XS | ||
| 130-10015xx-(B) | 1500 | 1500 | PX20XS | ||
| 130-07725xx-(B) | 2000 | 2500 | PX20XS | ||
| 130-15015xx-(B) | 2300 | 1500 | PX20XS | ||
| 130-10025xx-(B) | 2600 | 2500 | PX20XS |
