Characteristic:

Featuring 16 levels of equal angle constant moment subdivision, with a maximum resolution of 60000 steps per revolution

The maximum response frequency can reach 200Kpps

When the step pulse stops for more than 1.5 seconds, the coil current automatically decreases to half of the set current

Optoelectronic isolation signal input/output

The driving current is adjustable from 2.2A/phase to 4.8A/phase in 16 levels

Single power input, voltage range: AC120V~260V

Phase memory function (note: after the input stops for more than 3 seconds, the driver automatically remembers the current motor phase, and when it is powered on again or the MF signal changes from low level to high level, the driver automatically restores the motor phase).

Current setting

The operating current of the driver is set by terminals D1-D4, and the operating current is the normal output current setting switch (see the table below for details)

Subdivision settings

The subdivision of the driver is set by terminals D5-D8, with a total of 16 levels. D9 and D10 are functional settings. Attached Table: Subtraction (Pulse/Revolution)

Note: Customization of fine scores can be made according to customer requirements!

Wiring precautions:

1. The input voltage cannot exceed AC 260V

2. The input control signal level is 5V. When it is higher than 5V, a current limiting resistor needs to be connected, and the driver comes with a 24V signal interface

3. The falling edge of the input pulse signal is effective

4. When the temperature of the drive exceeds 80 degrees Celsius, the drive stops working and the fault indicator light ALM lights up. Until the temperature of the drive drops to 50 degrees Celsius, the drive needs to be powered on again to resume operation. If overheating protection occurs, please install a radiator

5. The overcurrent (load short circuit) fault indicator light ALM is on. Please check the motor wiring and other short circuit faults. After troubleshooting, it is necessary to power on again to restore

6. No motor fault indicator light ALM is on. Please check the motor wiring. After troubleshooting, power on again to restore

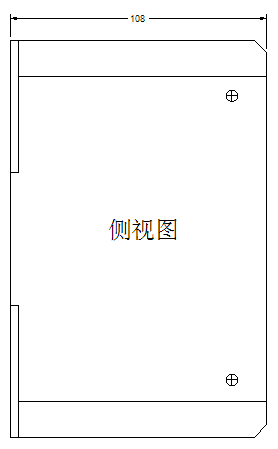

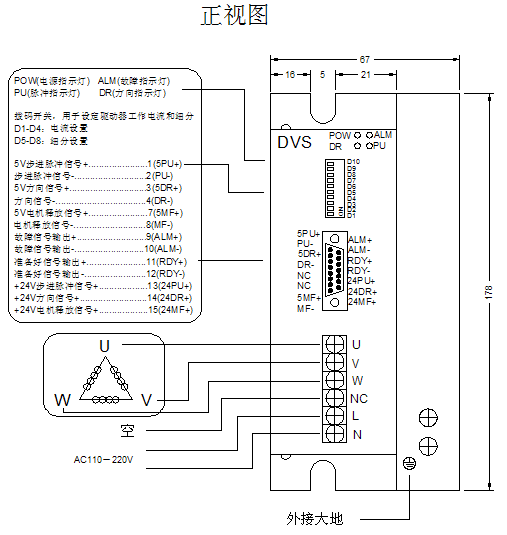

Pin Function Description:

Pin number	Marking symbols	Function Description	Notes
1	PU+	Input signal photoelectric isolation positive terminal	Connected to a+5V power supply, both+5V and+24V can be driven, and above+5V, a current limiting resistor needs to be connected
2	PU-	DP9=OFF, PU is the progress pulse signal	The falling edge is effective. Whenever the pulse changes from high to low, the motor takes one step and the input resistance is 220 Ω                  Requirements: Low level 0-0.5V, high level greater than 4V, pulse width>2.5 μ S
		DP9=ON, PU is a positive phase stepper pulse signal
3	DR+	Input signal photoelectric isolation positive terminal	Connected to a+5V power supply, both+5V and+24V can be driven, and above+5V, a current limiting resistor needs to be connected
4	DR-	DP9=OFF, DR is the direction control signal	Used to change the direction of the motor. Input resistance 220 Ω                  Requirements: Low level 0~0.5V, high level greater than 4V, pulse width>2.5 μ S
		DP9=ON, DR is a reverse step pulse signal
7	MF+	Input signal photoelectric isolation positive terminal	Connected to a+5V power supply, both+5V and+24V can be driven, and above+5V, a current limiting resistor needs to be connected
8	MF-	Motor release signal	When effective (low level), the motor wiring current is turned off, the driver stops working, and the motor is in a free state
9	ALM+	Driver fault output signal photoelectric isolation positive terminal	When the driver experiences overcurrent or overheating faults, the driver outputs a fault signal, which is valid (low level)
10	ALM-	Driver malfunction good output signal photoelectric isolation negative terminal
11	RDY+	Driver ready to output signal photoelectric isolation positive terminal	The driver status is normal and ready to receive the controller signal. The signal is valid (low level)
12	RDY-	Driver ready to output signal photoelectric isolation negative terminal
13	24PU+	Input signal photoelectric isolation positive terminal	+24V drivable
14	24DR+	Input signal photoelectric isolation positive terminal	+24V drivable
15	24MF+	Input signal photoelectric isolation positive terminal	+24V drivable
1、2	L、N	Power Supply	Power supply: AC80V~290V
3	NC	Ground wire open	Earth (internal drive housing)
4	U	Motor wiring
5	V
6	W
