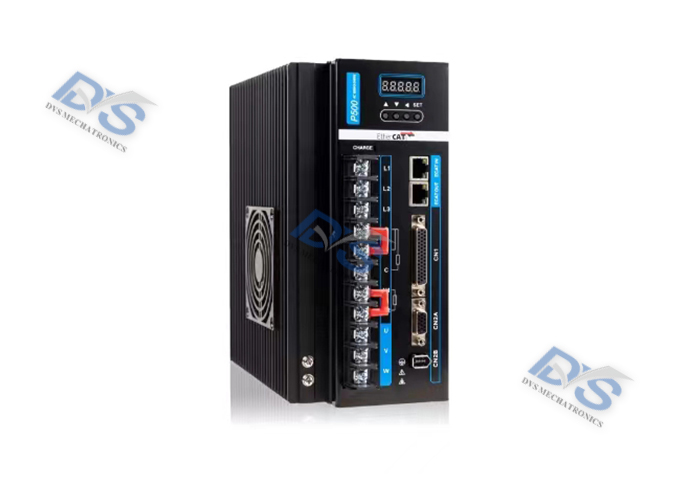

P500E bus servo

Model	P500E
Output power	3.5KW~7.5KW
Main circuit input power supply	Three phase AC220V/Three phase AC380V-15%~+10% 50/60Hz
Monitoring function	Torque/current position/instruction pulse accumulation/position deviation/motor torque/motor current/operating status, etc
Control mode	Periodic synchronization position/speed/torque, contour position/speed/torque, return to zero mode
Protection function	Overspeed/main power supply overvoltage/undervoltage/overcurrent/overload/encoder abnormality/control power supply abnormality/position deviation, etc
Control input	1: Servo enable 2: Alarm clear 3: CCW drive inhibit 4: CW drive inhibit 5: Deviation counter reset 6: Command clear 7: CCW torque limit 8: CW torque limit
Energy consumption braking	Internal/External
Applicable load	Less than 3 times the motor inertia
Display Operation	5-digit LED digital display with 4 operation buttons
Position control	Input method	EtherCAT control
	Input electronic gear ratio	Gear ratio shaft accuracy: 1-2097152
		Gear ratio motor accuracy: 1-2097152
