86mm series three-phase stepper motor
DV series three-phase hybrid stepper motor
Product Introduction
Project specification step accuracy+5% temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ insulation resistance 100M Ω Min500VDC withstand voltage 500VAC 1 minute radial runout maximum 0.06mm (450g load) axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Motor length L （mm） | Rated voltage （V） | Rated current （A） | Resistance （Ω） | Inductance （mH） | Driver power input | Rotor inertia （g.cm²） | Motor weight （kg） | Adapted Driver |
| DV397-H | 1.2 | 69 | 2 | 1.75 | 3.77 | 11.6 | AC220V2A | 1320 | 2 | DV3422 |
| DV397 | 1.2 | 69 | 2 | 5.8 | 0.5 | 0.9 | DC40V5A | 1320 | 2 | DV378 |
| DV3910-H | 1.2 | 97 | 4 | 2 | 4.65 | 14.6 | AC220V2.5A | 2400 | 3 | DV3422 |
| DV3910 | 1.2 | 97 | 4 | 5.8 | 0.7 | 1.5 | DC40V5A | 2400 | 3 | DV378 |
| DV3911 | 1.2 | 105 | 4 | 4 | 1.04 | 8.5 | DC40V4A | 2700 | 3 | DV378 |
| DV3913-H | 1.2 | 125 | 6 | 3 | 2.0 | 8.0 | AC220V2.5A | 3480 | 4 | DV3422 |
| DV3913 | 1.2 | 125 | 6 | 5.8 | 0.9 | 2.17 | DC40V5A | 3480 | 4 | DV378 |
| DV3915-H | 1.2 | 145 | 8.5 | 3.2 | 2.6 | 9.57 | AC220V3A | 4560 | 5 | DV3422 |
| DV3915 | 1.2 | 145 | 8.5 | 5.8 | 0.88 | 2.63 | DC40V5A | 4560 | 5 | DV378 |

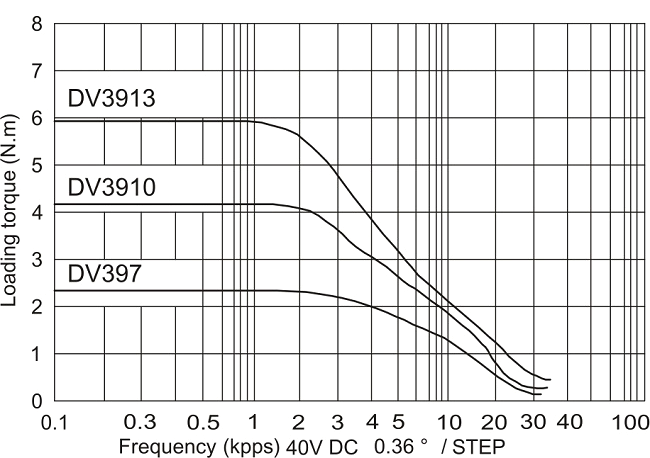

Moment frequency characteristic curve

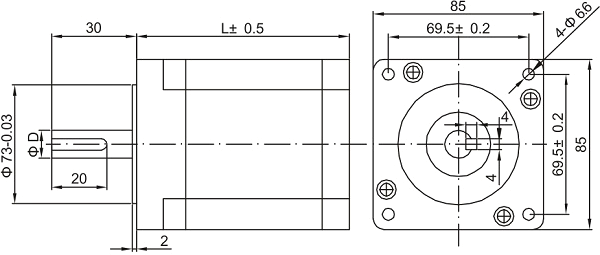

External dimensions
| Model | Shaft diameter（mm） | Shaft extension（mm） |
| DV397(H) | 12 | Flat key 4x4x20 |
| DV3910(H) | 12 | Flat key 4x4x20 |
| DV3913(H) | 14 | Flat key 4x4x20 |
| DV3915(H) | 14 | Flat key 4x4x20 |

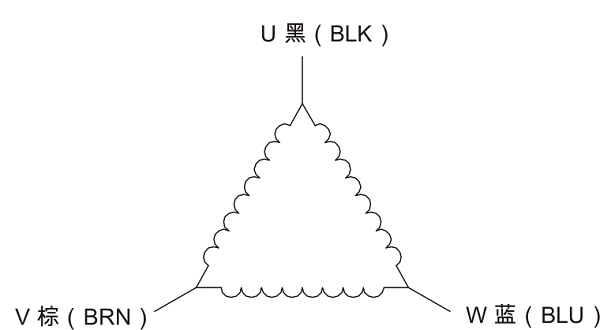

Wiring method
Wiring diagram line length 2000mm
