110mm series three-phase stepper motor
DV series three-phase hybrid stepper motor
Product Introduction
Project specification step accuracy+5% temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ insulation resistance 100M Ω Min500VDC withstand voltage 500VAC 1 minute radial runout maximum 0.06mm (450g load) axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Motor length L （mm） | Rated voltage （V） | Rated current （A） | Resistance （Ω） | Inductance （mH） | Driver power input | Rotor inertia （g.cm²） | Motor weight （kg） | Adapted Driver |
| DV31112 | 1.2 | 127 | 8 | 4.3 | 1.004 | 4.3 | AC220V5A | 6000 | 5 | DV3722 |
| DV31115 | 1.2 | 151 | 12 | 6 | 0.6 | 2.67 | AC220V5A | 9720 | 6.4 | DV3722 |
| DV31118 | 1.2 | 185 | 16 | 6.4 | 0.7 | 2.96 | AC220V5A | 13560 | 8.8 | DV3722 |
| DV31122 | 1.2 | 219 | 20 | 6.9 | 0.57 | 2.46 | AC220V5A | 17400 | 10.9 | DV3722 |

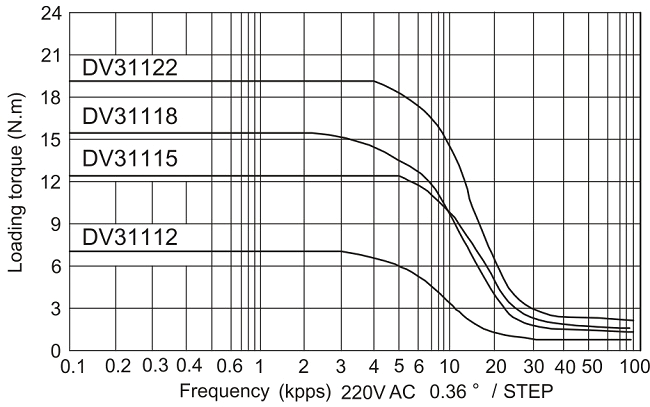

Moment frequency characteristic curve

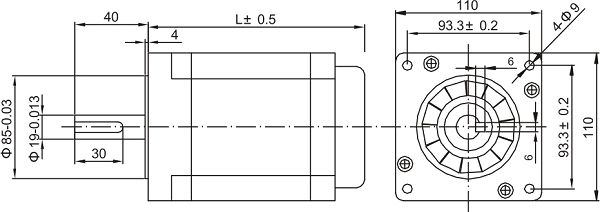

External dimensions
| Model | Shaft diameter（mm） | Shaft extension（mm） |
| DV31112 | 19 | Flat key 6x6x30 |
| DV31115 | 19 | Flat key 6x6x30 |
| DV31118 | 19 | Flat key 6x6x30 |
| DV31122 | 19 | Flat key 6x6x30 |
Wiring method

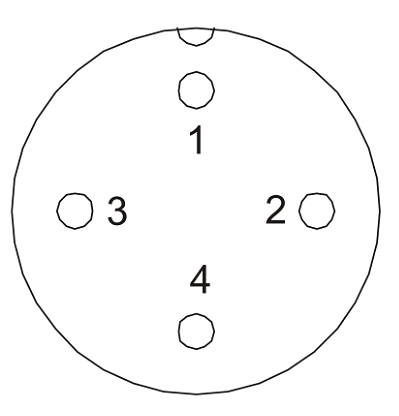

Wiring diagram
| Serial Number | Phase sequence |
| 1 | U |
| 2 | V |
| 3 | W |
| 4 | GND |
