130mm series three-phase stepper motor
DV series three-phase hybrid stepper motor
Product Introduction
Project specification step accuracy+5% temperature rise 80 ℃ Max ambient temperature -20 ℃~+50 ℃ insulation resistance 100M Ω Min500VDC withstand voltage 500VAC 1 minute radial runout maximum 0.06mm (450g load) axial runout maximum 0.08mm (450g load)
Specification parameters
| Model | Step angle （°） | Motor length L （mm） | Rated voltage （V） | Rated current （A） | Resistance （Ω） | Inductance （mH） | Driver power input | Rotor inertia （g.cm²） | Motor weight （kg） | Adapted Driver |
| DV31315 | 1.2 | 161 | 15 | 6.9 | 0.55 | 3.5 | AC220V5A | 20000 | 11 | DV3722 |
| DV31318 | 1.2 | 190 | 20 | 6.9 | 0.72 | 4.7 | AC220V5A | 26700 | 14.1 | DV3722 |
| DV31322 | 1.2 | 222 | 28 | 6.9 | 0.95 | 6.1 | AC220V5A | 33970 | 17.2 | DV3722 |
| DV31325 | 1.2 | 254 | 35 | 6.9 | 1.1 | 7.4 | AC220V6A | 41240 | 19.8 | DV3722 |
| DV31332 | 1.2 | 318 | 50 | 6.9 | 1.4 | 9.82 | AC220V6A | 55780 | 22.8 | DV3722 |

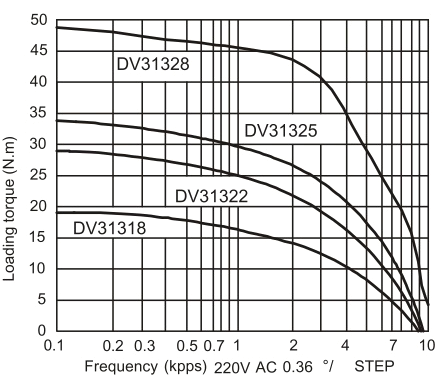

Moment frequency characteristic curve

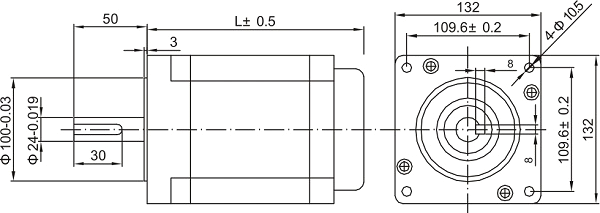

External dimensions
| Model | Shaft diameter（mm） | Shaft extension（mm） |
| DV31315 | 24 | Flat key 8x8x30 |
| DV31318 | 24 | Flat key 8x8x30 |
| DV31322 | 24 | Flat key 8x8x30 |
| DV31325 | 24 | Flat key 8x8x30 |
| DV31332 | 24 | Flat key 8x8x30 |
Wiring method
Wiring diagram
| Serial Number | Phase sequence |
| 1 | U |
| 2 | V |
| 3 | W |
| 4 | GND |
Wiring instructions

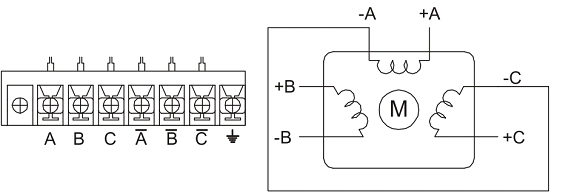

1. △ Connection Method: As shown in the figure (A+, B -) - phase, (B+, C -) - phase, (C+, A -) - phase, respectively, U, V, W, the driver current is set to √ 3 times the phase current. For example, if the DV31115 phase current is 3.5A, the driver current should be set to √ 3x3.5=6A. At this time, the in

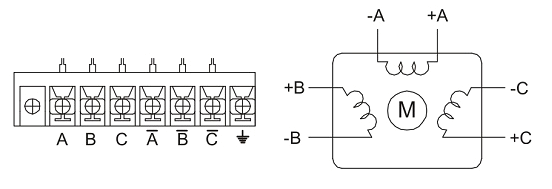

2. Y connection method: As shown in Figure A -, B -, and C - connected in parallel, A+, B+, and C+are U, V, and W three-phase, respectively. At this time, the driver current is set to the phase current value of the motor. For example, if the phase current of DV31115 is 3.5A, the driver current should be set to 3.5A.
